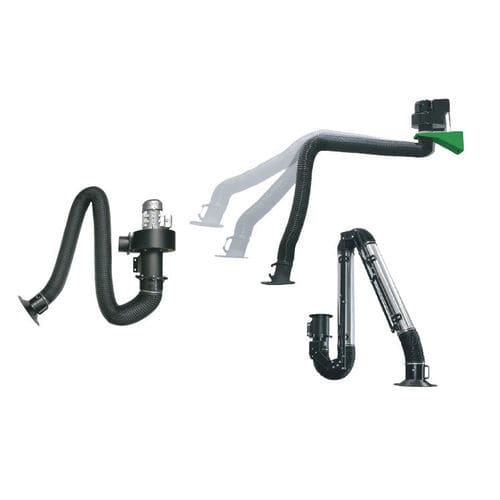

Fixed extraction arm 1040 series

wall-mountedflexiblearticulated

Product description
Fixed air launcher systems for ducted extraction, designed to transfer fumes and dust to large central extraction units. Suitable for industrial spot extraction where localised fumes or dust must be removed externally. The system is supplied with a mounted extraction fan, extraction hose and wall bracket; rotating arms enable targeted capture in confined work areas.

Design and operation
The unit integrates a 220V extraction fan (rated 2500 m³/h) with a Ø160 mm extraction hose. Rotating, positionable extraction arms allow flexible targeting of emission points with minimal intervention. The compact wall-mounted bracket simplifies installation and maintenance.

• Power supply: 220V
• Nominal fan capacity (unit): 2500 m³/h
• Typical model air flow: 1300 m³/h
• Hose diameter: Ø160 mm
• Included: extraction fan, hose, wall bracket and articulated arm

Models
HEADER: STOCK CODE | MODEL | LENGTH MT | AIR FLOW (m3/h) | VOLTAGE
104093000152 | Fixed air launcher (internally jointed) | 3 mt | 1300 m³ | 220V
104094000152 | Fixed air launcher (internally jointed) | 4 mt | 1300 m³ | 220V
104095000152 | Fixed air launcher (internally jointed) | 5 mt | 1300 m³ | 220V
104096000152 | Fixed air launcher (internally jointed) | 6 mt | 1300 m³ | 220V
104103000152 | Fixed air launcher (externally jointed) | 3 mt | 1300 m³ | 220V
104104000152 | Fixed air launcher (externally jointed) | 4 mt | 1300 m³ | 220V
104105000152 | Fixed air launcher (externally jointed) | 5 mt | 1300 m³ | 220V
104106000152 | Fixed air launcher (externally jointed) | 6 mt | 1300 m³ | 220V

Acrobat arms & accessories
Internally jointed acrobat arm - HEADER: STOCK CODE | MODEL | AIR FLOW (m3/h) | LENGTH | HOSE DIAMETER
104112000152 | Internally jointed Acrobat Arm | 1300 m³ | 2 Metre | Ø 160 mm
104113000152 | Internally jointed Acrobat Arm | 1300 m³ | 3 Metre | Ø 160 mm
104114000152 | Internally jointed Acrobat Arm | 1300 m³ | 4 Metre | Ø 160 mm

Externally articulated acrobat arm - HEADER: STOCK CODE | MODEL | AIR FLOW (m3/h) | LENGTH | HOSE DIAMETER
104122000152 | Externally articulated Acrobat Arm | 1400 m³ | 2 Metre | Ø 160 mm
104123000152 | Externally articulated Acrobat Arm | 1400 m³ | 3 Metre | Ø 160 mm
104124000152 | Externally articulated Acrobat Arm | 1400 m³ | 4 Metre | Ø 160 mm

Extension arm with bracket - HEADER: STOCK CODE | MODEL | LENGTH
104132000152 | Extension Arm with Bracket | 2 Metre
104133000152 | Extension Arm with Bracket | 3 Metre
104134000152 | Extension Arm with Bracket | 4 Metre
104135000152 | Extension Arm with Bracket | 5 Metre

Accessories - HEADER: STOCK CODE | MODEL
904000000201 | Acrobat Arm Head
904000000202 | Acrobat Arm Head With Flap
904000000203 | Acrobat Arm Hose
904000000204 | Fixing Bracket

Technical specifications

• Extraction fan voltage: 220V
• Extraction fan unit capacity: 2500 m³/h
• Model table air flow (typical): 1300 m³/h
• Acrobat arm air flow: 1300–1400 m³/h depending on arm type
• Hose diameter: Ø160 mm
• Available arm lengths: 2 m, 3 m, 4 m, 5 m, 6 m (depending on model)
• Configuration: rotating extraction arms, wall-mounted bracket and extraction hose included
