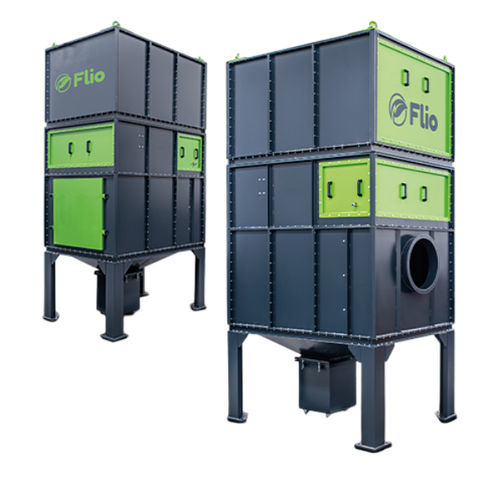

Cartridge dust collector Airjet

for cutting machinesexplosion-prooflaser

Overview
AIRJET filter systems are designed for extraction and filtration of smoke and particles generated by laser and plasma cutting machines. Equipment selection depends on required airflow, number of filters and motor power. Three models are available for central or localized filtration solutions.

Note
Explosion-proof electrical components are available as optional equipment to reduce the risk of sparks when processing materials such as aluminum.

Application Areas

• Laser cutting machines
• Plasma cutting machines
• Automation systems and production lines

Models and Specifications
STOCK CODE | MODEL | AIRFLOW | MOTOR POWER | NUMBER OF FILTERS | WEIGHT
105010000152 | AirJet 4000 | 4000 m³ | 5.5 kW 380V-50Hz | 4 | 480 kg
105020000152 | AirJet 6000 | 6000 m³ | 7.5 kW 380V-50Hz | 6 | 800 kg
105030000152 | AirJet 10000 | 10000 m³ | 11 kW 380V-50Hz | 9 | 1544 kg

Dimensions (mm)
MODEL | A | B | H
AirJet 4000 | 1460 | 1050 | 3270
AirJet 6000 | 1460 | 1650 | 3570
AirJet 10000 | 1981 | 1400 | 3845

Technical specifications

• Series: AirJet
• Function: Filtration of smoke and particles from laser and plasma cutting processes
• Optional: Explosion-proof electrical components to minimize spark risk on materials such as aluminum
• AirJet 4000 — Airflow: 4000 m³; Motor power: 5.5 kW 380V-50Hz; Number of filters: 4; Weight: 480 kg; Dimensions (A×B×H mm): 1460 × 1050 × 3270
• AirJet 6000 — Airflow: 6000 m³; Motor power: 7.5 kW 380V-50Hz; Number of filters: 6; Weight: 800 kg; Dimensions (A×B×H mm): 1460 × 1650 × 3570
• AirJet 10000 — Airflow: 10000 m³; Motor power: 11 kW 380V-50Hz; Number of filters: 9; Weight: 1544 kg; Dimensions (A×B×H mm): 1981 × 1400 × 3845
