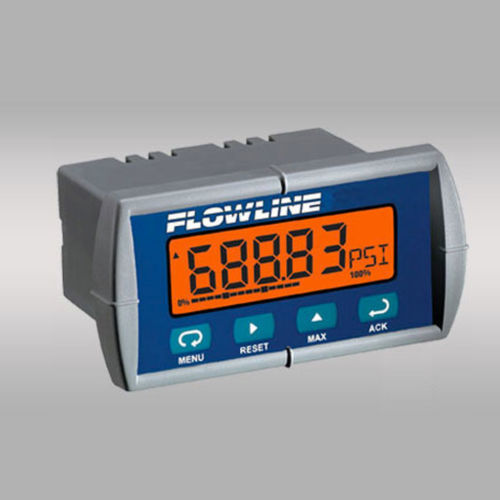

Process indicator DataLoop™ LI25-2001

voltagepowerheight

FM and CSA approved, the intrinsically safe loop powered level indicator displays engineering units connected in series with one 4-20 mA level transmitter. Select this panel mount indicator for use with intrinsically safe two-wire level transmitters. For field mount installation, add a single or double NEMA box. FEATURES Easy configuration via the push button display module LCD main display with secondary unit and bar graph display DIN enclosure with NEMA 4X faceplate and shallow case Linear, square root and programmable exponent functions Non-volatile memory with security password protection Windowed NEMA box accessory for field installations Display type: LCD, 5-digit Display units: Engineering Display output: -9999 to 99999 Display height: 0.6” (15mm) Decimal point: Floating Backlight: LED, orange Configuration: Push button Memory: Non-volatile Sensor input: (1) 4-20 mA transmitter Loop power: 12-30 VDC Voltage drop: 2.0 VDC w/o backlight, 5.7 VDC w/ backlight Process temp.: F: -22° to 149°, C: -30° to 65° Ambient temp.: F: -40° to 149°, C: -40° to 65° Enclosure type: 1/8 DIN, panel mount Enclosure rating: NEMA 4X (IP65) faceplate Enclosure mat’l: Polycarbonate Classification: Intrinsically safe Compliance: CE Approvals: FM, CSA: Class I, Div 1, 2, Groups A, B, C, D; Class II, Div 1, Groups E, F, G; Class II, Div 2, Groups G, G; Class III, Div 1; Class 1, Zone 0, Group IIC; T-code = T4
