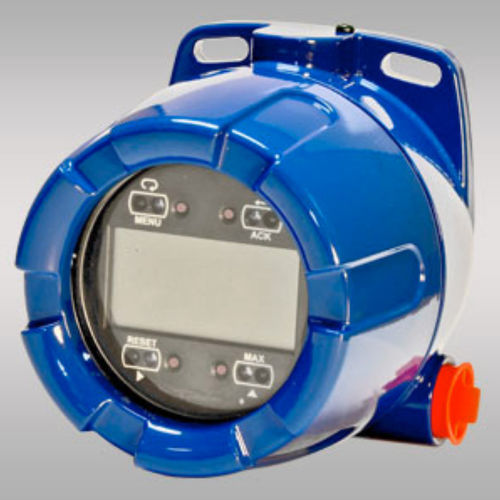

Liquid level indicator DataKeep™ 300500 XP

ultrasonicglassexplosion-proof

The explosion proof loop powered level indicator displays engineering units connected in series with one 4-20 mA continuous level transmitter. Select this level indicator for hazardous applications with an explosion proof level sensor. The windowed field enclosure is easily wall mounted and includes two conduit connectors. FEATURES Rugged aluminum explosion proof windowed enclosure LCD display indicates engineering units and descriptors Non-volatile memory with security password lock out SafeTouch through-glass button programming 32-point, square root or exponential linearization Display type: LCD, Upper: 5 digits, Lower: 7 characters Display units: Engineering Display output: 0.001 to 99,999 Display height: Main: 0.70” (18mm), Secondary: 0.4” (10mm) Decimal point: 0, 1, 2 or 3 Configuration: Push button, SafeTouch through-glass Memory: Non-volatile Sensor input: (1) 4-20 mA transmitter Loop power: 9-30 VDC Voltage drop: 3.0 VDC @ 20 mA w/o backlight, 6.0 VDC @ 20 mA with backlight Ambient temp.: F: -40° to 167°, C: -40° to 75° Enclosure rating: NEMA 4X, 7 & 9 (IP68) Enclosure mat’l.: Aluminum Window mat’l.: Glass Conduit entrance: Dual, 3/4” NPT Classification: Explosion proof Compliance: CE Approvals: FM, ATEX, IECEx, CSA
