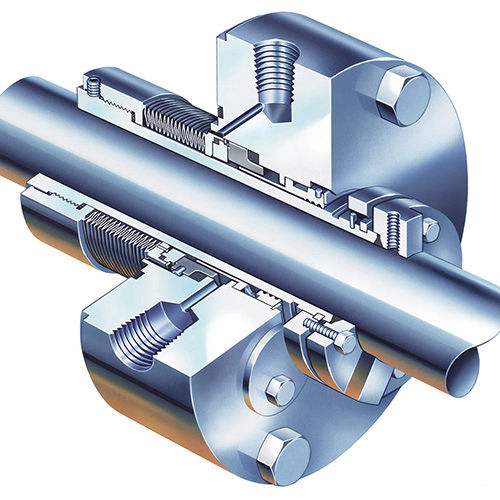

Bellows mechanical seal BRC
for pumpsmetalchemical process

bellows mechanical seal
bellows mechanical seal
Add to favorites
Compare this product


Characteristics

Type
bellows
Applications
for pumps
Material
metal
Domain
chemical process
Other characteristics
for high-temperature applications
Operating pressure

21 bar (305 psi)

Operating temperature

Min.: -73 °C (-99 °F)

Max.: 427 °C (801 °F)

Description

BRC Series edge-welded metal bellows seals are exceptionally robust and designed to seal high-temperature hydrocarbons, heat transfer fluids and severe services in refineries and hydrocarbon processing plants. The BRC series is fully compliant with API 682 Type C requirements and features thick-plate Alloy 718 bellows convolutions for superior corrosion resistance. Operating Parameters Pressure: up to 20.7 bar (300 psi) Temperature: -73°C to 427°C (-100°F to 800°F) Speed: up to 23 m/s (75 fps) Sizes: 28.2 to 150 mm (1.110 to 5.906 inches) FEATURES & BENEFITS Longer service life ensure by the use of edge-welded, thick-plate Alloy 718 bellows that comply with NACE MR0103 criteria and can withstand long-term chemical exposure Reliability resulting from the canned face design that eliminates shrink-fit distortions and allows low-leakage performance Prolonged clean operation (on stationary configurations) due to steam purge baffle that eliminates coking Configurable with a rotating or stationary bellows to fit a wide range of high temperature application needs
