Balanced mechanical seals

Operating pressure: 0 bar - 25 bar
Operating temperature: -20 °C - 160 °C

Standard balanced mechanical seal with protected spring and pentagonal drive. The protected-spring design makes this seal suitable for a wide range of applications: pumps ...

Operating pressure: 0 bar - 20 bar
Operating temperature: -30 °C - 200 °C

LATTY Sealis Simple cartridge seal, robust solution aimed for slurry applications. Composition : Secondary sealant : HNBR/ FKM / EPDM / FFKM. Metallurgy of parts : 304 (1.4301) or 316 (1.4401). Support ...

Operating pressure: 0 bar - 20 bar
Operating temperature: -20 °C - 220 °C

... LATTYseal B 17110, which is manufactured by Latty International, is a complete mechanical seal and is suitable to use in chemical, petrochemical, pulp and paper applications. This seal ...

Operating pressure: 25 bar
Operating temperature: -15 °C - 200 °C

DESCRIPTION: A double cartridge seal with a “face to face” arran- gement which permits opération with barrier fluids in excessive pressure conditions with respect to the working fluid (P1 + 2 ~ 3 kg/cm2). The cartridge ...

Operating pressure: 25 bar
Operating temperature: -15 °C - 200 °C

A single cartridge seal with connections for flushing the mechanioal seal contact surfaces. The springs are protected from the product to prevent blocking in applications with particle. The standard ...

Operating pressure: 35 bar
Operating temperature: -15 °C - 200 °C

... the fluid. idéal for using in cleaning processes since the possibility of particles adhering to the seal is considerably redu- ced. Intemally balanced, with no need for a stepped shaft (LWS10B). ...

Operating pressure: 17,000 mbar
Operating temperature: 300 °C

... non-clog seal uses a unique coil spring design in which the springs are located entirely outside the seal. It is engineered to fit Warman® AH® series pumps​​ without modification. The 170L uses a single ...

Operating pressure: 31 bar
Operating temperature: -55 °C - 300 °C

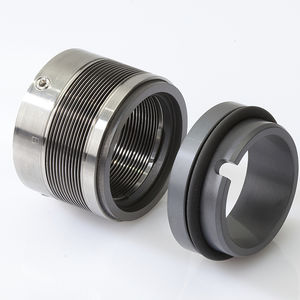

... 186 metal bellows cartridge seal is made for general service in the petrochemical and chemical industry. The layout of the rotating bellows is self cleaning in process fluids containing solids. The shaft speed of ...

Operating pressure: 10 bar
Operating temperature: -55 °C - 300 °C

The 286 is a metal bellows cartridge dual seal. A twelve convolution bellow core is used to obtain a maximum bellow plate thickness. This shows that the spring rate gives a lower heat generation and greater seal ...

Operating pressure: 0 psi - 300 psi
Operating temperature: 0 °C - 204 °C

• Drive mechanisms external to the product;• Seal faces positioned for maximum protection;• A dynamic elastomer moves on a non-metallic surface, eliminating fretting defects;• Hydraulically balanced;• ...

Operating pressure: 0 psi - 400 psi
Operating temperature: 0 °C - 204 °C

Cartridge seals for critical, toxic and emission control applications, where single seals are notaccepted;• Built-in pumping device improves barrier fl uid cooling;• Springs locations prevents contact ...

Operating pressure: 0 psi - 300 psi
Operating temperature: 0 °C - 200 °C

... corrosion;• Monolithic rotating unit virtually eliminates clogging in the seal area;• A dynamic elastomer moves on a non-metallic surface, eliminating fretting defects;• Hydraulically balanced;• Cartridge ...

Operating pressure: 100 bar
Operating temperature: -55 °C - 315 °C

Single mechanical seal, balanced, independent of the direction of rotation with multi-spring configuration. The MTM180 Series represents the mechanical seal ...

Operating pressure: 64 bar
Operating temperature: -40 °F - 428 °F

Single mechanical seal, balanced, external, independent of the direction of rotation with multi-spring configuration. The MTM190 Series represents the mechanical seal ...

Operating pressure: 928 psi
Operating temperature: -40 °F - 428 °F

Single echanical seal, balanced, independent of the direction of rotation with multi-spring configuration. The springs are never in contact with the fluid. The MTM190 Series represents the mechanical ...

Operating pressure: 350 psi
Operating temperature: 204 °C

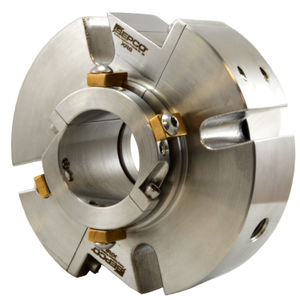

SINGLE ROTARY CARTRIDGE SEALThe SEPCO SRC is a single internal cartridge mounted rotary seal designed for general service applications.

Operating pressure: 350 psi
Operating temperature: 204 °C

DOUBLE ROTARY CARTRIDGE SEALThe SEPCO DRC is a multiple cartridge mounted rotary seal designed to be easily adapted on equipment that is difficult to fit.

... XRS has a balanced design which allows for pressures up to 300 psi (20 Bar). This design feature greatly increases the range for applications of a split seal. Seal face wear indicator ...

Operating pressure: 65 Pa
Operating temperature: -30 °C - 320 °C

The single mechanical seal with balanced sealing ring can be used for high inlet pressures and needs to be used in combination with balanced shaft (double extended shaft, ...

Operating pressure: 65 Pa
Operating temperature: -30 °C - 320 °C

The double mechanical seal with balanced sealing ring can be used for high inlet pressures. It needs to be used in combination with balanced shaft (double extended shaft, ...

Operating pressure: 400 psi
Operating temperature: -40 °C - 204 °C

... vibrations and centrifugal forces Optimal performance is attained by selecting from three standard seal face balances; the BXQ seal is high balanced for flashing hydrocarbon applications Increased ...

Operating pressure: 27 bar
Operating temperature: -30 °C - 260 °C

The Type 80, which is manufactured by Garlock, is a balanced rotary component seal that features multiple rotary coil spring, and is field repairable. The unit has a minimum diameter of 25.4 mm, and has ...

Operating pressure: 0 bar - 83 bar
Operating temperature: -40 °C - 205 °C

John Crane Type 2 non-pusher elastomer bellows seal is multipurpose and is available in single, double and balanced arrangements. It can fit very short stuffing boxes because of its compact working height, ...

Operating pressure: 25 bar
Operating temperature: -40 °C - 220 °C

Features For unstepped shafts Rotating bellows Single Seal Balanced Independent of direction of rotation Advantages For extreme temperature ranges No dynamically loaded O-Ring ...

Operating pressure: 0 bar - 35 bar
Operating temperature: -60 °C - 200 °C

DETAILS O Single acting O Inside mounted O Balanced O Independent of direction of rotation APPLICATIONS O Water and waste water O Food and beverages industry O Oil applications O General chemicals OPERATING RANGE O Shaft ...
