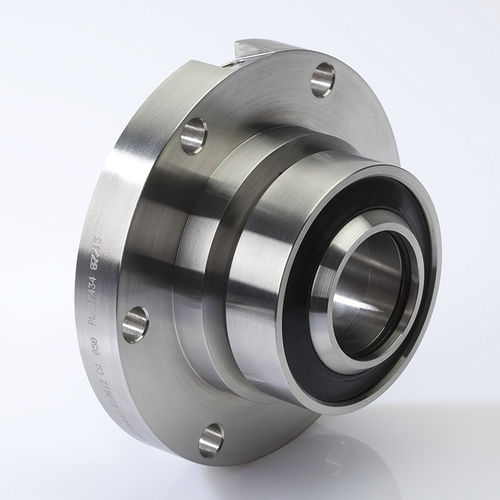

Cartridge mechanical seal LATTY Sealis
for centrifugal pumpsfor agitatorsfor mixers

cartridge mechanical seal
cartridge mechanical seal
Add to favorites
Compare this product


Characteristics

Type
cartridge
Applications
for centrifugal pumps, for agitators, for mixers, for slurries, for corrosive liquids
Material
steel
Domain
chemical, for the paper industry, for water treatment
Other characteristics
balanced, external
Operating pressure

Max.: 20 bar (290 psi)

Min.: 0 bar (0 psi)

Operating temperature

Max.: 200 °C (392 °F)

Min.: -30 °C (-22 °F)

Description

LATTY Sealis DYNAMIC SINGLE CARTRIDGE SEAL, ROBUST SOLUTION AIMED FOR SLURRY PUMP APPLICATIONS. LATTYsealis single cartridge seal are balanced single-effect seals with quench option. This simple cartridge seal is specially designed to ensure optimum sealing even with difficult products such as alumina, phosphate, abrasive, adhesive, crystallising or corrosive products. The feature of LATTYsealis mechanical seals is the membrane which is made up of a steel core covered with elastomer. This covering provides chemical and mechanical abrasion protection. Simple, robust cartridge seal. No flush or external lubrication required. Easy to assemble. Surface covering (protection against abrasion) on the parts in contact with the product to be sealed. Independent of the direction of rotation. Existing cartridge and quench versions ready for assembly. No surface blocking due to adhesion of semi-dynamic O-ring. Friction faces : Nickel-impregnated tungsten carbide (U2), nickelimpregnated tungsten carbide (U2) - option possible silicon carbide (U6) Fluids : All highly corrosive, abrasive and slightly clogging fluids. Material : Mixers, blenders, centrifugal pumps, agitators. Composition Secondary sealant : HNBR/ FKM / EPDM / FFKM. Metallurgy of parts : 304 (1.4301) or 316 (1.4401). Support in 316 L (1.4404) with option of chromium carbide covering to preserve against abrasion or er Parameters Pressure : 0 to 20 bar Temperature : -30 to 200 °C Speed : 20.0 m/s Type of industries Mining, quarries, pulp and paper, water treatment, cosmetic, paint, sugar industry.
