bellows mechanical seal / for centrifugal pumps / for corrosive liquids / metal
LATTYseal B 17110 HT

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

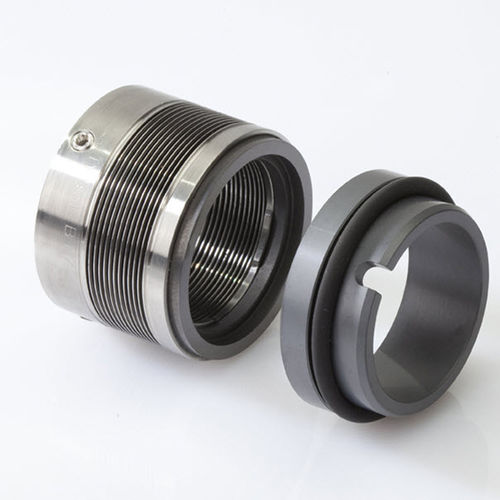

bellows mechanical seal bellows mechanical seal - LATTYseal B 17110 HT
{{requestButtons}}

Characteristics

  • Type:

    bellows

  • Applications:

    for centrifugal pumps, for corrosive liquids

  • Material:

    metal, rubber, carbon

  • Domain:

    for the chemical industry, for the paper industry, for the petrochemical industry

  • Other characteristics:

    balanced

  • Operating pressure:

    Min.: 0 bar (0 psi)

    Max.: 20 bar (290 psi)

  • Operating temperature:

    Min.: -20 °C (-4 °F)

    Max.: 220 °C (428 °F)

Description

LATTYseal B 17110 HT

SINGLE BALANCED MECHANICAL SEAL

Using state-of-the-art welded bellows technology, LATTY®seal B 17110 HT provides no hang-up or shaft fretting due to the absence of semi-dynamic O-rings. The centrifugal force and bellows profile make LATTY®seal B 17110 HT a self-cleaning seal. Suitable for high rotation speeds. Self-cleaning mechanical seal. High rotation speeds are achievable. Imperial version available.

Friction faces : Metal-impregnated carbon (A), pure silicon carbide (U6)
Fluids : All corrosive, abrasive and slightly clogging fluids.
Material : Centrigugal pumps, volumetric pumps

Composition

Fluoro rubber (FPM)

Parameters

Pressure : 0 to 20 bar

Temperature : -20 to 220 °C

Speed : 25.0 m/s

Type of industries

Chemical, petrochemical, pulp and paper applications.
