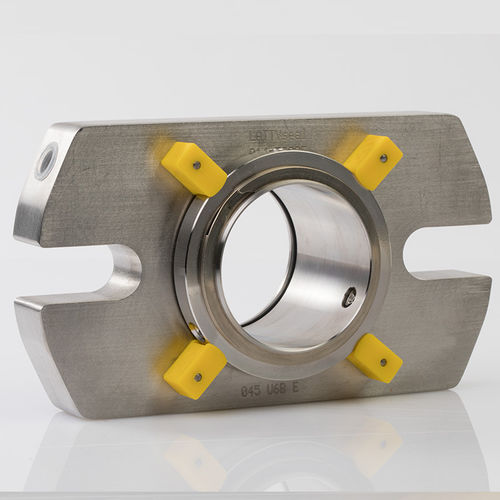

Spring mechanical seal CARTseal B 22812
for centrifugal pumpsfor agitatorsfor mixers

spring mechanical seal
spring mechanical seal
Add to favorites
Compare this product


Characteristics

Type
spring
Applications
for centrifugal pumps, for agitators, for mixers
Material
carbon
Domain
chemical, for the paper industry
Operating pressure

Max.: 25 bar (363 psi)

Min.: 0 bar (0 psi)

Operating temperature

Max.: 180 °C (356 °F)

Min.: -20 °C (-4 °F)

Description

CARTseal B 22812 STATIONARY MECHANICAL SEAL ALLOWING HIGH ROTATION SPEED EVEN WITH SHAFTS WITH SLIGHT ANGULAR OFFSET. The new mechanical seal CARTseal B 22812 is approved ATEX. Easy installation on all types of equipment (even in confined spaces) thanks to two wide slots in the flange. Stationary springs are protected as they are located outside the pumped fluid and therefore not prone to clogging. Mechanical seal with flush (feeding device for the faces) Factory-preset mechanical seal, there is no setting required during installation. No repositioning of the setting clamps prior to starting up. Simple, fast and easy installation. Imperial version available. Friction faces : U6 B V: Silicon carbide / resin-impregnated carbon / FKM O-ring or U6 U6 V: Silicon carbide / silicon carbide / FKM O-ring (on request) Fluids : All corrosive, abrasive and slightly clogging fluids. Material : Centrifugal pumps, Volumetric pumps, Vertical and horizontal agitators, Mixers Composition Friction faces : U6 B V: Silicon carbide / resin-impregnated carbon / FKM O-ring or U6 U6 V: Silicon carbide / silicon carbide / FKM O-ring (on request) Parameters Pressure : 0 to 25 bar Temperature : -20 to 180 °C Speed : 15 m/s Type of industries Chemical, Pharmaceutical, car industry, food industry, Boilers, Paper mills, Water distribution
