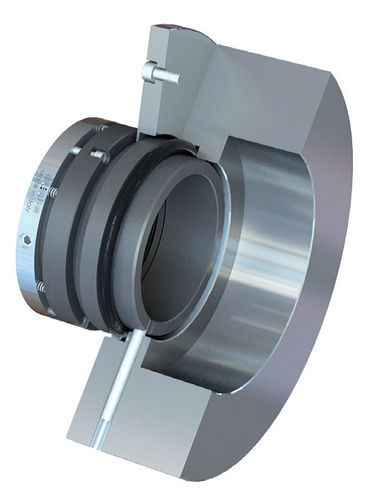

Multiple-spring mechanical seal MTM 190
for centrifugal pumpsexternalbalanced

multiple-spring mechanical seal
multiple-spring mechanical seal
Add to favorites
Compare this product


for centrifugal pumps
Other characteristics
external, balanced
Operating pressure

64 bar
(928 psi)

Operating temperature

Min.: -40 °F
(-40 °C)

Max.: 428 °F
(220 °C)


Single mechanical seal, balanced, external, independent of the direction of rotation with multi-spring configuration. The MTM190 Series represents the mechanical seal with the most reduced axial dimensions. Thanks to the possibility to be configured with all the stationary rings, it is interchangeable with all the most famous mechanical seal on the market today.Source of proud, it has been defined by the industry as Universal Seal. Made according to UNI EN 12756 ex DIN 24960 it is available in different materials including plastics such as PEEK and DIFLON. Thanks to its design it is able to resist up to 64 bar of pression.
