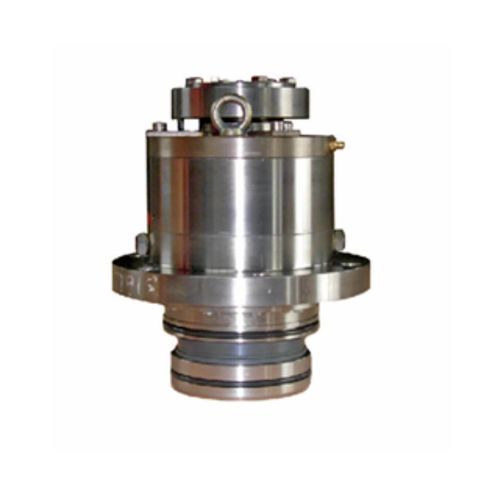

Cartridge mechanical seal GS610

for agitatorsfor mixerscarbon

Product Overview: GS610 double mechanical seal is designed for bottom entry agitator shaft sealing, featuring a robust design and long operational life. Operation Range: - Double-acting mechanical seal, liquid lubricated for slurry applications - Pair of product side seal rings extends into the vessel space - Smooth surfaces and minimized gaps to prevent dirty corners, allowing thorough cleaning - Suitable for sealing abrasive suspensions and sticky or crusty media (below liquid level, side entry installation) - Sterile seal construction available; any orientation possible - Operating pressure: vacuum...16 bar (abs.) - Vessel temperature: -50...+230 °C - Shaft size: 40...300 mm - Sliding speed: 0...5 m/s Main Design Features: - Smooth surface, free of dead spaces - CIP-/SIP (Cleaning in Place, Sterilization in Place) capable - Sliding materials FDA conform - Variant for sterile applications available - ATEX certification on request - Materials: - Seal faces: Silicon carbide, FDA conform - Seat: Carbon graphite (atmosphere side) or Silicon carbide (product side), FDA conform - Secondary seals and metallic parts according to application and customer requirements Features: - For top, side, and bottom entry drives - Seat at product side rotating - Unbalanced - Liquid-lubricated - Double seal - Independent of direction of rotation - Cartridge unit - With or without bearing available Industry Applications: - Petrochemical industry - Chemical industry - Pharmaceutical industry - Food and beverage industry - Mixers - Dryers - Mills - Kneaders - Reactors - Pressure filters Technical Specifications: - Product: GS610 Mechanical Seal - Type: Double mechanical seal for bottom entry agitator shafts - Design: Robust, long operation life - Operating pressure: vacuum to 16 bar (abs.) - Vessel temperature: -50 to +230 °C - Shaft size: 40 to 300 mm - Sliding speed: 0 to 5 m/s - Seal faces: Silicon carbide, FDA conform - Seat: Carbon graphite (atmosphere side) or Silicon carbide (product side), FDA conform - Secondary seals/metallic parts: As per application/customer requirements - Certifications: FDA, ATEX (on request)
