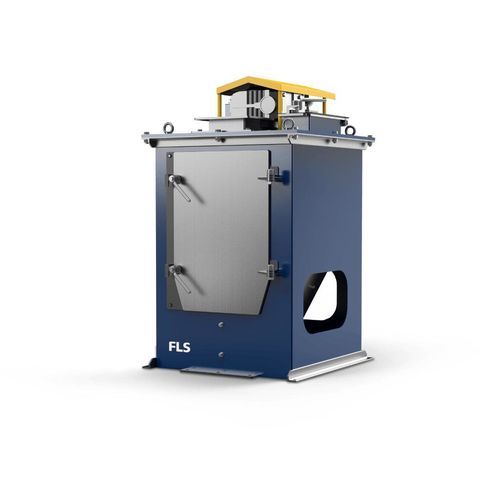

Granule sampler Essa® series

for solidsbulk solidsfor pellets

Overview
Our dry bulk rotary samplers are designed to minimise maintenance while delivering reliable, accurate results from falling streams of ore and other free‑flowing materials. Self‑contained and hard‑wearing, units incorporate easily replaceable cutters and large access doors, and are engineered to meet global sampling guidelines.

Key benefits

• Reliable sampling results: Provides precise, proportional samples to support process optimisation and quality control decisions.
• Robust and long‑lasting: Constructed from high‑grade steel with replaceable Ni‑Hard cutter lips and large side access doors for quick field replacement.
• Accessible but safe: Top and side hatches include safety mesh for observation without exposure to moving parts; drive design stops the cutter outside the falling stream for safer inspection.

Product range and models

• Essa® Vezin Samplers (VS): Square design for straightforward installation and flat wear liners. Enclosed rotating cutter moves at constant speed through the falling sample stream. Options: internal rubber lining and automatic washdown. Key features: up to four cutters; replaceable Ni‑Hard cutter lips; fixed‑speed three‑phase electric motor and gearbox.
• Essa® Dry Arcual Samplers (DAS): Fully enclosed unit with a traversing radial sample cutter that moves uniformly through a falling stream. Designed for vertical pipe installation with flanged connections. Key features: cutter spoon collects the required sample amount; replaceable Ni‑Hard cutter lips; fixed‑speed motor and gearbox.
• Essa® Rotary Tube Sampler (RTS): Distributes sample between multiple discharge chutes at the base for multiple outputs. Comprises a head platform with a braked gear motor and belt drive to rotate a material chute (tube). Key features: flexible percentage split options; replaceable cutter blades enclosed in the outfeed chute; easily replaceable cutter lip assemblies.

Maintenance and service
Products are supported by decades of sampling experience covering selection, design, installation and optimisation. Units are designed for straightforward maintenance with replaceable cutter components and accessible hatches to reduce downtime.

Technical specifications

• Material type: dry, free‑flowing bulk materials (ores, granules, powders, pellets).
• Construction: high‑grade steel body for long wear life.
• Cutter material: replaceable Ni‑Hard cutter lips.
• Cutter configuration: up to four cutters available (model dependent).
• Drive: fixed‑speed, three‑phase electric motor and gearbox; braked gear motor option for RTS.
• Installation types: square design for VS; vertical pipe with flanged connections for DAS; rotary tube chute for RTS.
• Safety: top and side hatches with safety mesh; drive designed to stop cutter outside falling stream for inspection.
• Maintenance features: large side access doors; easily replaceable cutter lip assemblies and discharge chute cutter blades.
• Options: internal rubber lining, automatic washdown, percentage split configuration (RTS).
