cartridge filtration system / for liquids / mobile / hydraulic
SMFS-U-CM-110

{{requestButtons}}

Characteristics

  • Technology:

    cartridge

  • Designed for:

    for liquids

  • Other characteristics:

    mobile, hydraulic

  • Filtration size:

    Min.: 3 µm

    Max.: 25 µm

  • Flow rate:

    110 l/min (29.059 us gal/min)

Description

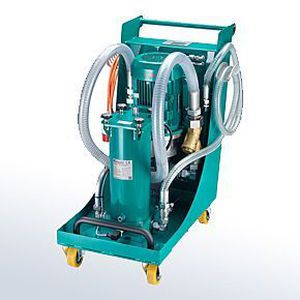

Mobile filtration systems are essential for the first load of hydraulic or lubricating fluids in new plants, for their testing and for their periodic maintenance. The SMFS-U-CM-110 flushing trolley is equipped with an electric motor of 4 kW @ 1,450 rpm, 400 VAC-50 Hz, a pump flow rate of 110 l / min, with filter elements of 3 to 25 μm absolute, with electric indicator and with 8-channel contamination class integrated control meter for accurate and continuous monitoring of the filtration process; weight of the cart is 177 Kg. Various other variants available and personalization even with low and high pressure separated circuits.
