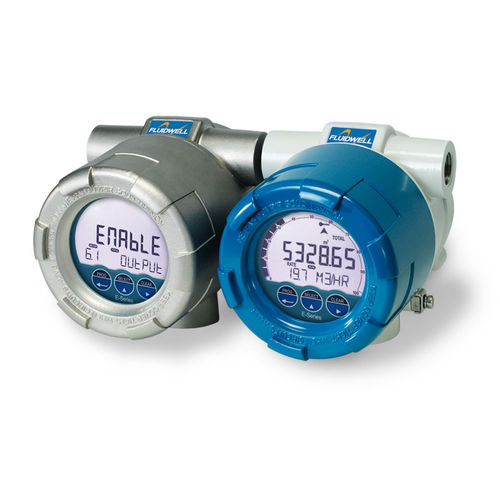

Liquid flow computer E126-EL

with counting functionATEXtemperature-compensated

The E126-EL flow computer measures the actual flow and temperature and calculates the corrected volumetric flow by using the thermal expansion coefficient algorithm stored in the flowcomputer. The reference temperature can be defined as desired, e.g. 15°C, 20°C or 60°F. The robust E126-EL is designed with a focus on your safety. It’s beyond fulfilling the rules for hazardous area approvals, because the environment is often much tougher than explosion proof requirements demand. Experiencing flaws in your processes due to rain, snow, salty atmospheres (offshore) or early wear? The E126 delivers accurate measurement while withstanding the harshest conditions. Advantages - Saves time and improves flexibility with the through-glass keypad: no need to open the front cover. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Durable high-grade stainless steel 316L Ex d enclosure withstanding extreme (maritime) conditions. Features - Explosion proof according ATEX, IECEx and CSA C-US. - Easy installation with the spacious chamber and plug & play connectors. - Cost saving with an easy to install, 1” NPT thread for direct flowmeter mounting. - Key information at a glance as the display shows flow rate, total, accumulated total, temperature, pressure, measuring units and a flow rate indicating speedometer. - Easy K-factor and engineering unit configuration for volumetric or mass. Learn more with this interactive tutorial. - Current day total (Daily total), previous day total (both non-resettable) and 15 historical day totals can be displayed.
