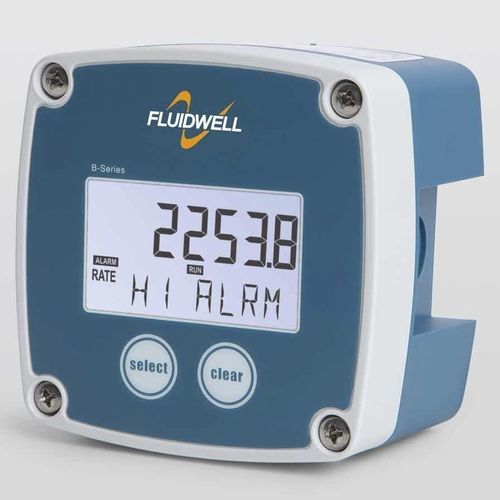

Rate indicator totalizer B-Alert

flowwith LED displaypanel-mount

The B-Alert is a flow rate indicator / totalizer with continuous flow rate monitoring feature. It has one low flow rate and one high flow rate alarm value. The display shows flow rate, total, accumulated total and alarm messages. Advantages - Basic flow rate monitoring with a precise calculation over the full measurement range, where re-transmission of the totalizer and monitoring of the flow rate function is required. - The B-Series is our most cost effective display but with all the benefits you may expect from a Fluidwell product: It’s durable, reliable and very easy to operate. Basic with a capital B! - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. Features - Displays instantaneous flow rate, total, accumulated total and alarm messages. - Two configurable pulse outputs according to accumulated total. - Two alarm values can be entered: low and high flow rate alarm. - One 20mm (0.79") and two 16mm(0.63") knock-out hole cable entries. - “Know one, know them all” configuration structure. - Clear 12mm(0.5”) numeric digits and 7mm(0.3”) alphanumeric digits. - Lithium AA battery and 10 - 30V DC power supply. - Sensor supply: 8.2V DC. - Easy configurable via PC with free downloadable remote configuration tool and special communication cable (ACE02). Applications - Basic flow rate monitoring with a precise calculation over the full measurement range, where re-transmission of the totalizer and monitoring of the flow rate function is required. - The B-series offers you an economical solution for common industrial applications. Nothing more, nothing less.
