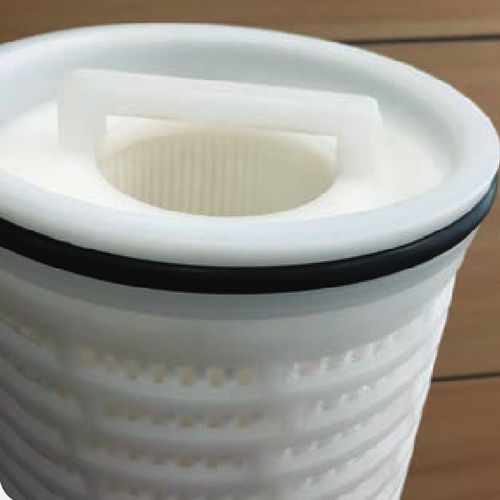

Water filter cartridge
depthpolypropylenefor general purposes

water filter cartridge
water filter cartridge
water filter cartridge
water filter cartridge
water filter cartridge
Add to favorites
Compare this product


Characteristics

Media
water
Type of filtration
depth
Material
polypropylene
Applications
for general purposes, process, for pharmaceutical applications, for food applications, for chemical applications
Domain
industrial
Other characteristics
pleated
Removal rating

Max.: 40 µm

Min.: 1 µm

Flow rate

Max.: 1.48 m³/h
(52.27 ft³/h)

Min.: 0.15 m³/h
(5.3 ft³/h)

Description

Made with 100% polypropylene pleated thread, they combine a high trapping capacity with high filtering efficiency. Depth pleated structure, combination of multiple media, high dirt holding capacity and absolute micron rating. 100% Polypropylene construction suitable for Water, Amine and wide range of chemical solution filtration. Greater filtration surface area per cartridge, high flow rate, low delta pressure and longer service life, low filtration operating cost and labor cost. Retention Rating from 1 to 40 μm. Inside to outside flow pattern, captures all contaminants at inside of filter element, preventing dirt release on changing cartridge. Greater filtration surface area per cartridge, longer service life,significantly reduces the waste disposal for incinerator, more environmental friendly. Suitable for high liquid filtration, such as Cooling Water Filtration, RO Pre-Filtration, Seawater Desalination, Amine Circulation Filtration and all kinds of chemical solution filtration. Install with HF FTP High Flow filter housing, saves space and equipment cost. Manufacture in Class 10,000 clean room environment.
