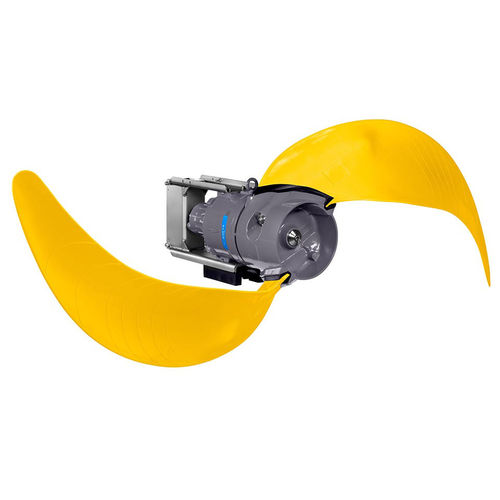

turbine mixer / batch / solid/liquid / for the pharmaceutical industry
Flygt 4410

{{requestButtons}}

Characteristics

  • Technology:

    turbine

  • Batch/continuous:

    batch

  • Applications:

    solid/liquid

  • Application domain:

    for the pharmaceutical industry, water treatment

  • Other characteristics:

    hydraulic

Description

PRODUCT FEATURES

Shaft power range of 0.9 – 2.6 kW and thrust range of 200 – 2300 N
Energy-saving propeller diameter of 1.4 - 2.5 m (55 - 98 in)
Dependable Class H motor
Reliable shaft seals
Guide bar systems for any tank
Safe, convenient lifting equipment

Designed for high reliability
Flygt low-speed mixers feature several components that contribute to reliable operation and reduced energy costs, including energy-saving propellers, dependable class H motors, and reliable shaft seals.

Xylem's Flygt unique propeller design maximizes the amount of thrust delivered while minimizing energy consumption. Engineered for hydraulic excellence with high-strength materials, Flygt signature banana blade, large-diameter propellers with backswept, self-cleaning design provide non-clogging performance that lasts.

Xylem's Flygt squirrel-cage induction motor is carefully manufactured for durability and dependability. Stator windings are trickle impregnated in resin and rated at Class H 180 degrees C (355 degrees F) to provide excellent resistance to overheating and exceptionally long service life.

A vital component for reliable operation, Flygt mechanical shaft seals feature a unique design with an intermediate barrier fluid. Made of corrosion-resistant tungsten carbide (WCCR), Flygt specially manufactured seals provide exceptional mechanical strength and superior sliding properties. This results in significantly less wear between the seal surfaces. It also reduces the risk of leakage and prolongs seal service life.
