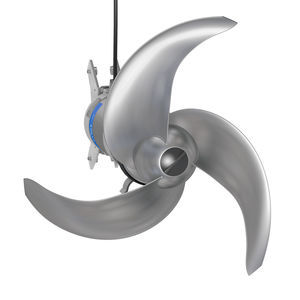

Propeller mixer 4320

verticalcontinuousfor liquids

Compact, Efficient and Scalable Submersible Mixer with Adaptive and Geared Performance With its ability to continuously adjust the output to the actual demand, the submersible, geared Flygt 4320 adaptive mixer revolutionizes the wastewater treatment industry by bringing full automation into the mixing process. Product Features High-efficiency permanent magnet IE4 equivalent motor Integrated power electronics based on the Flygt Dirigo technology that eliminate the need for external Variable Frequency Drives (VFD) Large diameter propeller (up to 2,5 m) with backswept self-cleaning design Geared and adjustable output (thrust) with speed up 70 rpm Scalable mixer control system with flexibility to match different process scenarios Tank-side or remote control by using FPG 415 gateway with analog I/O and fieldbuses (ADF-system) Automated control for oxidation ditch processes by using pre-engineered controller APP 412 with analog I/O and fieldbuses (ADC-system) Full status and alarms information for flexible or automated control (ADF and ADC-system) by using jog wheel operator panel FOP 315 or touch screen operator panel FOP 402 Multiple mixer control with APP 412 (ADC system) Easy to upgrade to flexible or automated mixer control (ADF or ADC system) The mixer is always the same independent of control system Consistently correct propeller rotation Soft start and stop Automatic overload protection Power factor close to 1
