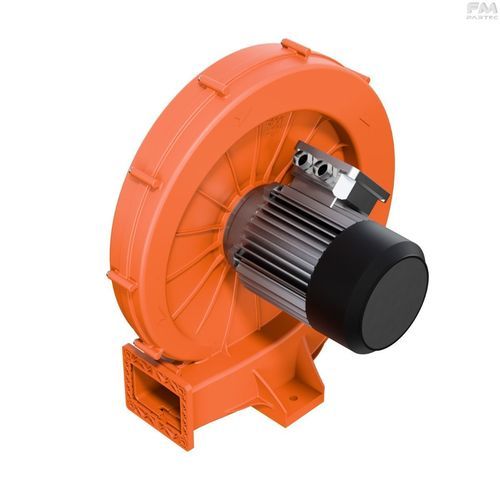

Air blower AL.GB 5K IE5

centrifugal380 v / 50 HzIE4

Overview
This AL.GB 5K IE5 industrial blower is designed for demanding drying and process applications requiring inverter control and sustained torque across a wide speed range.

Blower features

• Permanent-magnet synchronous brushless 3-phase motor, 6 poles, rated 3 kW, 380 V
• Requires inverter (variable frequency drive) for operation and DC/control functions
• Efficiency class: IE4 (≈89.1%); product designation includes 'IE5'
• Maximum speed: 5000 RPM at 250 Hz (with inverter)
• Torque characteristic: maintains same torque from 25 Hz to 250 Hz
• Remote control via inverter with Modbus, Profinet cards, etc.

Product details
Code: F120029007
Description: AL.GB 5K IE5
Brand: GreenBlow
Color: Orange
Version: 3 kW
Minimum order quantity: 1

Technical specifications

• Model: AL.GB 5K IE5
• Product code: F120029007
• Motor type: Permanent-magnet synchronous brushless, 3-phase
• Poles: 6
• Rated power: 3 kW
• Rated voltage: 380 V (requires inverter for operation)
• Efficiency class: IE4 (≈89.1%)
• Maximum speed: 5000 RPM (at 250 Hz with inverter)
• Torque: maintains torque from 25 Hz to 250 Hz
• Control: Remote control via inverter (Modbus, Profinet, etc.)
• Color: Orange
• Minimum order quantity: 1
• Note: product designation includes 'IE5' while efficiency data indicates IE4; both values provided from source.
