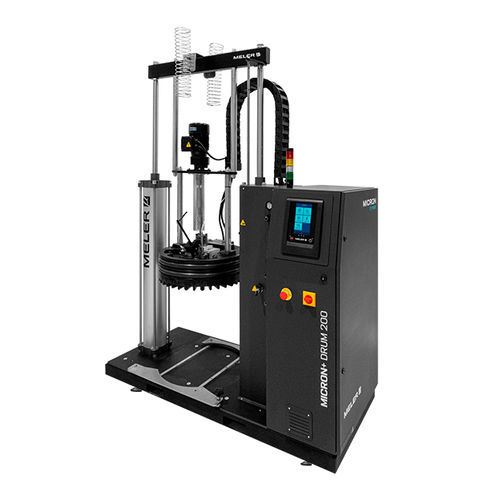

Loss-in-weight unloader MICRON+ DRUM 200

automaticcontinuousindustrial

Product overview
MICRON+ DRUM 200 is a drum follower/unloader designed for 200 L (55 gal) hot-melt adhesive drums, providing homogeneous melting, reliable sealing and a constant adhesive supply for demanding industrial applications. The unit features air-injection automatic drum ejection and a modular design to adapt to specific production needs.

Key functions and technology

• Homogeneous melting and effective sealing of drum contents.
• Automatic drum ejection via air injection for safe and efficient drum changes.
• Integrated ADA weight-control system for precise flow regulation by automatically adjusting pump speed according to required adhesive amount.
• All control functions integrated into Meler's electronic platform for process stability and repeatability.

Integration and operation
MICRON+ DRUM 200 integrates easily with main machines using multiple communication protocols. The Tandem option (standard) allows two Drum 200 units to operate in parallel to avoid production downtime during drum replacement. Communication between follower plates is simplified by a pre-installed cable harness with connector.

Adaptability and options

• Different pump sizes (single and double pump configurations).
• Various input voltages (e.g. 400V / 480V options).
• Measurement units adaptable to geographic markets.
• Fixed or variable pump-speed control.
• Different melting discs (smooth, radial fins, parallel fins) depending on adhesive type and required melting ratio.

Benefits

• High energy efficiency.
• Configurable, modular design for process adaptation.
• Easy access for operation and maintenance.
• Simple installation and full connectivity for line integration.
• Enables use of special adhesives (PUR, PSA, EVA).

Technical specifications

• Drum dimensions: Ø 571 mm / Ø 22.5 in (inside)
• Disc options: Smooth, radial fins, parallel fins
• Melting capacity: Up to 180 kg/h (397 lb/h)
• Pumping capacity: Single pump: 1, 2.5, 4, 8, 15, 20, 30 cc/rev; Double pump (per output): 2×0.93, 2×1.86, 2×3.71, 2×4.8 cc/rev
• Number of pumps: Up to 2 single pumps 15 cc/rev
• Hydraulic outlets: 2 per pump (3/4’’ UNF thread)
• Number of electrical outputs: Up to 10 (European connection); Up to 6 (American connection)
• Pump speed: 10–80 rpm (0–100 rpm range)
• Bypass valve: Mechanical or pneumatic
• Maximum installed power: 40 kW
• Dimensions (L×W×H): 1655 × 700 × 1760 mm (bottom plate); 1655 × 700 × 2780 mm (top plate)
• Weight: 780 kg / 1,720 lb
• Electrical requirements: 3L/N/PE ~ 400V 50/60Hz; 3L/PE ~ 480V 50/60Hz
