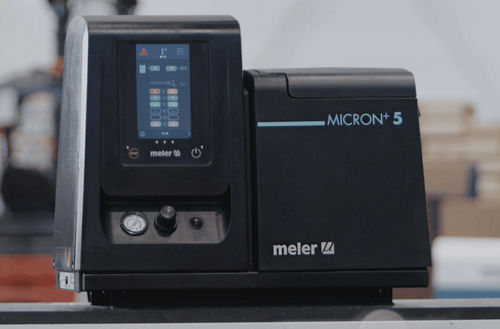

Adhesive melter Micron+

hot melt glue

Overview
Micron+ is a hot melt melter designed for Industry 4.0, providing precise melting and controlled dispensing of hot-melt adhesives. The equipment emphasises homogeneous temperature distribution, adhesive preservation, low maintenance and seamless integration into production lines.

Energy efficiency and maintenance
Reduces electrical consumption by up to 60% compared with competitors. Sequential heating and uniform temperature distribution ensure efficient melting and protect adhesive properties. The design facilitates easy loading and cleaning to keep maintenance time and costs low.

Connectivity and monitoring
Multiple connectivity options enable remote control from any device. Supports a wide range of industrial communication protocols. Data monitoring and logging allow status checks, diagnostics and remote maintenance.

Usability and safety
Advanced usability via a 7" touchscreen HMI with optional removable interface for remote operation. Configurable outputs and cool-touch housings simplify loading and cleaning while protecting operators and reducing downtime.

Integration
Designed for easy integration into the main machine; the unit can be controlled from a single interface through online interconnection and synchronised with other production equipment.

Icons / Key benefits

• WiFi connection
• Wide variety of communication protocols
• Accessible advanced technology
• Ease of use and installation
• Versatility to boost productivity
• Energy efficiency

Technical specifications (visual / labelled items)
MELTING CAPACITY
from 9.0 to 30 kg/h

PUMPING CAPACITY
29.3 kg/h pump 7cc(*); 66 kg/h pump 19cc(*)

NUMBER OF OUTLETS
2, 4 or 6 electrical outlets – 6 hydraulic outlets

TEMPERATURE RANGE
0 to 200°C (32 to 392°F)

TEMPERATURE CONTROL
Pt100, Ni120 or NTC-R

MAXIMUM WORKING PRESSURE
81.6 bar (1,183 psi)

ELECTRICAL FUNCTIONALITIES
INPUTS: Equipment On-Off, Standby, activity control (auto Standby/OFF), pumping On-Off, communications On-Off, inhibition of electrical outputs.
OUTPUTS: Adhesive low level, pumping activated, temperature OK, error, level error (tower light).

ELECTRICAL REQUIREMENTS
1N ~ 230V 50/60Hz + PE or 3N ~ 400V 50/60Hz + PE

OPTIONS (examples)
Temperature range 0 to 230°C (32 to 446°F); Automatic pressure control VP-200; Transformer base for 400 VAC without neutral (not available in version 35); Air input filter; Low level float sensor (not available at 230°C) or capacitive sensor with or without tower light; Automatic adhesive loader.

Features

• Versatility
• Usability
• Melting capacity
• Adhesive treatment
• Energy efficiency
• Accessibility

Technical characteristics / specifications

• Model: Micron+
• Melting capacity: 9.0 to 30 kg/h
• Pumping capacity: 29.3 kg/h (7 cc) or 66 kg/h (19 cc)
• Outlets: 2, 4 or 6 electrical outlets; 6 hydraulic outlets
• Temperature range: standard 0–200°C (optional up to 230°C)
• Temperature control sensors: Pt100, Ni120 or NTC-R
• Maximum working pressure: 81.6 bar (1,183 psi)
• Electrical supply options: 1N 230V 50/60Hz + PE or 3N 400V 50/60Hz + PE
• Connectivity: WiFi and a wide variety of industrial communication protocols; remote control and data monitoring
• User interface: 7" touchscreen HMI with optional removable HMI and icon-based menu
