Welding clamping and fixture system

for optical measuring devices

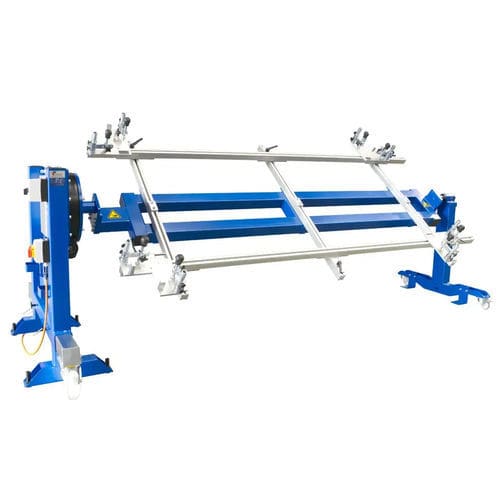

Welding device for frames with turning function- ergonomic, precise and fast. Our frame welding jigs are specially designed for the production of right-angled frames, without time-consuming measuring. The guaranteed right-angled adjustment of the frame width and frame height eliminates all work steps of measuring and aligning. Mechanical clamping elements with spindle pressure support the compensation of unevenness. Set up - insert frame elements - clamp - weld - done. Supports with exposed corners on the top and bottom ensure maximum accessibility for machining. The built-in 360 degree rotation function assists in welding through both sides of the frame as well as its finishing at the weld seam without time-consuming handling processes. An optional measuring system with digital display reduces the set-up time considerably. Further equipment for the assembly of intermediate struts or add-on elements is available in our accessories. "Stepless and precise adjustment to frame sizes ergonomic workpiece positioning and access to components from both sides welding, gluing, screwing or riveting in one setup expandable with additional supports for cross or longitudinal rungs Frame sizes: up to 3000 mm x 4300 mm (depending on the model) Component weights: up to 300 kg (depending on the design) Profile cross-section: up to 100 x 100 mm Axle height: 1,000 mm Motorized turning drive: 225° or 360° (depending on model) Rotation speed: approx. 1 rpm Electrical connection: 380 - 480 V/ 50 Hz tool-free setup Ground connection on the frame Can be used mobile or stationary Included in the delivery: 2 longitudinal beams and 4 clamping corners for clamping rectangular frames
