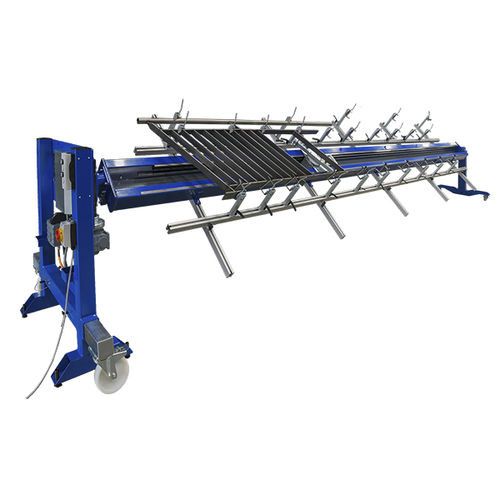

Railing welding fixture

to manufacture continuously and precisely symmetrical and asymmetrical railing types ergonomic railing positioning and bilateral Component access Railing lengths: up to 9,000 mm (depending on the design) Railing heights: 600 to 1,500 mm (depending on the design) Railing inclines: 0 to 60° Component weights: up to 150 kg (reinforced version up to 300 kg) Profile cross-section: up to 80 x 40 mm or Ø 80 mm Axle height: 1,000 mm Motorized turning drive: 360° Electrical connection: 400 V/ 50 Hz upper and lower belt holders in stainless steel Programmable Version: Repeatable automated approach to the rod and post positions Convenient parameterization on the PC or on the device Versatile software with calculation algorithms for all types of railings Input of bar spacing, number of bars and posts, or automatic calculation of bar spacing between posts. Data backup in program memory or on the PC Positioning carriage including interchangeable battery and charger tool-free Furnish Also available as a manual version
