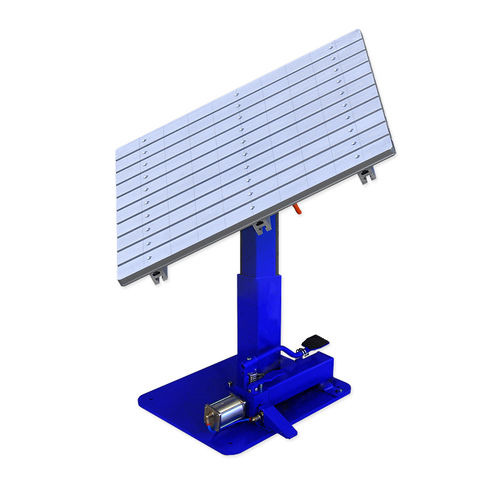

Cast iron welding table Ergofix®

aluminumcopper alloylifting

"Ideal seam position for ergonomic hand welding Tabletop available in Al/Cu, grey cast iron or X-Pro T-Slot-System for unlimited clamping possibilities Solid material with lifetime weld spatter protection stepless lifting function, manual or electric stepless tilt function, manual or electric Stepless rotation function for optimal positioning of the workpiece Surface load up to 150 kg Tilt: 45°, electrohydraulic or manual with lock Rotation: 360° endless, manual with lock Lift: approx. 690 to 990 mm (electrohydraulic or manual with foot pump) Electrical connection: 230 V /50 Hz (only for electrohydraulic version) Surface flatness of rail +/- 0.05 mm The ERGOFIX is a FÖRSTER welding manipulator that combines three movements in one device: it rotates the workpiece endlessly through 360°, tilts it up to 45° and adjusts the height hydraulically from 690 mm to 990 mm. This brings parts up to 150 kg into the ideal seam position for ergonomic hand welding. The tabletop is available in Al/Cu, grey cast iron or X-Pro. Made in Germany. available wit T-slot rails in either grey cast iron, X-Pro or aluminum-copper-alloy 780 x 800 mm (X-pro rails) up to 1.200 x 1.200 mm
