Aluminum welding table

cast ironfor copper alloyslifting

Product overview

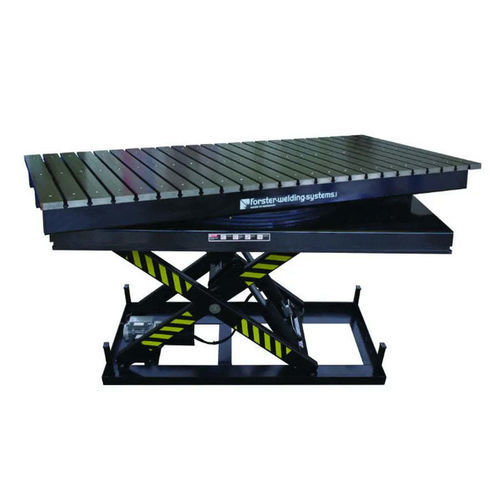

The FÖRSTER lift & rotate welding table combines a hydraulic scissor lift with a 360° rotary tabletop to allow stepless height adjustment and manual rotation of the workpiece. Surface options, a groove/T-slot system and robust construction make it suitable for welding and assembly tasks. Made in Germany.

Key features

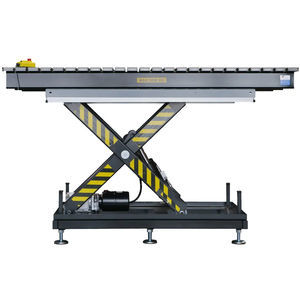

• Hydraulic scissor lift for stepless height adjustment (approx. 450–1,250 mm)
• 360° manual rotation of the tabletop with manual parking brake
• Tabletop surface options: cast iron, Al/Cu, X-PRO
• Groove / T-slot system for versatile clamping and fixturing
• Tool-free adjustments for quick modifications
• Optional chassis/undercarriage with casters for mobility

Additional product information

• Delivery time: 6 to 8 weeks
• Stationary tables can be equipped with an optional chassis (mobile base) on request

Technical specifications

• Available table surface materials: Cast iron (for welding), Al/Cu (for stainless steel processing), X-PRO (for assembly)
• Standard tabletop sizes: 1500 x 1200 mm; 2400 x 1200 mm; 3000 x 1500 mm
• Stroke / lift range (hydraulic scissor lift): approx. 450–1,250 mm
• Electrical connection: 400 V / 50 Hz
• Surface flatness of rail: ±0.05 mm
• Rotation: manual 360° turntable, lockable (manual parking brake)
• Point load (per rail): up to 1.5 t
• Area (surface) load: published values up to 2 t (product) and up to 3.2 t (FAQ) — see product page
• Groove / T-slot system for compatibility with a wide range of clamping devices and stop elements
• Tool-free adjustment features for rapid reconfiguration
• Optional: undercarriage / chassis with casters to make the table mobile
• Custom sizes and partial-occupancy variants available on request
• Designed and manufactured in Germany
