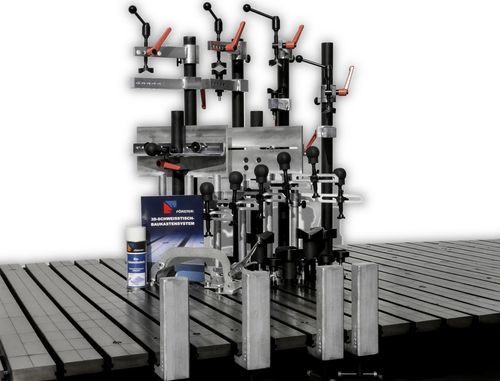

Manual clamping set Set 2

for tubesfor T slotwelding

Overview
Clamping set for FÖRSTER welding tables designed for pipe and tube construction. Carefully selected components provide efficient, repeatable clamping for fabrication and assembly tasks. Two execution variants are available to suit steel or stainless steel processing.

Delivery & options
Delivery time: 5 to 7 working days
Available executions: Execution for all welding work; Adapted for stainless steel processing

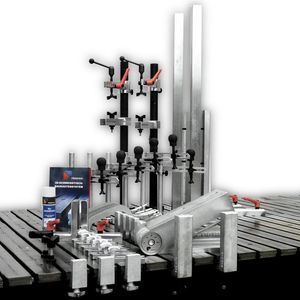

Set contents — Set 2 - Steel Pipe Construction

• 6 clamping arms with clamping element Ø 30 mm
• 6 clamping columns complete, Ø 30 mm x 350 mm
• 4 tension towers complete, Ø 50 mm x 900 mm
• 4 clamping arms with clamping element Ø 50 mm
• 4 edge stops, height 200 mm, in cast iron
• 4 support arms Ø 50 mm
• 2 flange clamps with clamping tower Ø 50 mm x 600 mm
• 6 prism supports Ø 60 mm
• 4 prism supports Ø 100 mm
• 4 angle brackets 100 mm x 170 mm in cast iron
• 2 angle brackets 170 mm x 170 mm in cast iron
• 2 universal angles 600 mm x 350 mm in aluminum

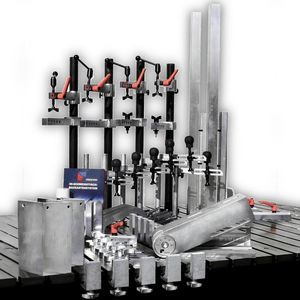

Set contents — Set 2 - Stainless steel pipework

• 6 clamping arms with clamping element with brass pressure piece
• 6 clamping columns complete, Ø 30 mm x 350 mm
• 4 tension towers complete, Ø 50 mm x 900 mm
• 4 clamping arms with clamping element Ø 50 mm with brass pressure piece
• 4 edge stops in aluminium, height 200 mm
• 4 support arms Ø 50 mm with brass pad
• 2 flange clamps with clamping tower Ø 50 mm x 600 mm
• 6 prism supports Ø 60 mm in brass
• 4 prism supports Ø 100 mm in brass
• 4 aluminum angle brackets 100 mm x 170 mm
• 2 aluminum angle brackets 170 mm x 170 mm
• 2 universal angles 600 mm x 350 mm in aluminum

Important notes

• Sets are prepared to match FÖRSTER welding tables (T-slot systems) and intended for efficient, repeatable clamping in pipe fabrication.
• Steel execution uses cast iron and steel components; stainless execution replaces contact pieces with brass and uses aluminium where specified to avoid surface damage and corrosion.
• Choose the stainless-steel variant when processing stainless materials to prevent marking and galvanic issues.

Technical specifications

• Brand: FÖRSTER (FÖRSTER welding systems)
• Product: Set 2 - Pipe construction
• Compatibility: Designed for FÖRSTER welding tables (T-slot compatibility)
• Delivery time: 5 to 7 working days
• Variants: Standard for all welding work; Adapted for stainless steel processing
• Main materials: cast iron, aluminium, brass (variant dependent)
• Primary components: clamping arms Ø30/Ø50 mm, clamping columns Ø30 mm x 350 mm, tension towers Ø50 mm x 900 mm
• Intended use: clamping and fixturing for pipe/tube construction on welding tables
