Mechanical clamping set Set 3

for T slotweldingadjustable

Overview
Clamping sets for FÖRSTER welding tables — carefully selected components for efficient clamping and flexible fixture setups. Each set is configured to match FÖRSTER T-slot welding tables without unnecessary individual parts.

Delivery
Delivery time: 5 to 7 working days.

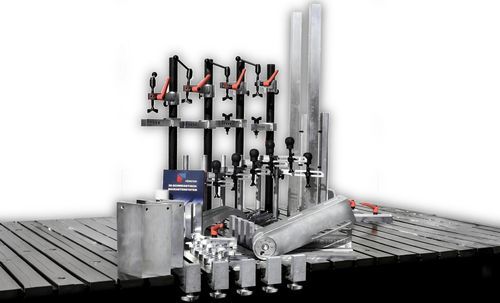

Contents (Set 3 - Frame and housing construction)

• 6 pieces clamping arm with clamping element Ø 30 mm (with brass pressure piece where specified)
• 6 pcs clamping column complete, Ø 30 mm × 350 mm
• 4 flat clamps (with stainless steel washer where specified)
• 4 pieces clamping arm with clamping element Ø 50 mm (with brass pressure piece where specified)
• 4 pcs support arm Ø 50 mm (with brass pad where specified)
• 4 pcs tension tower complete, Ø 50 mm × 900 mm
• 5 pcs edge stop, height 70 mm (cast iron or aluminium depending on version)
• 2 pcs double groove profile 1200 mm for mounting on stop bracket
• 6 pcs flat stop (aluminium in some versions)
• 4 pcs angle bracket 100 mm × 170 mm (cast iron or aluminium depending on version)
• 2 pcs angle bracket 170 mm × 170 mm (cast iron or aluminium depending on version)
• 2 pieces universal angle 600 mm × 350 mm (aluminium)
• 1 pc angle bracket, continuously adjustable (cast iron or aluminium depending on version)
• 2 pieces universal angle 350 mm × 350 mm

Notes on versions / materials
Standard sets use cast iron/aluminium components where indicated. A stainless-steel-adapted version replaces certain parts with aluminium, stainless-steel washers and brass pressure pieces/pads on specified clamping/support arms.

Usage
Set 3 is intended for frame and housing construction tasks on FÖRSTER welding tables. The components enable efficient clamping, repeatable fixturing and flexible setups for welding and assembly operations.

Technical specifications

• Set name: Set 3 - Frame and housing construction
• Compatibility: Designed for FÖRSTER welding tables (T-slot system)
• Included components: See components list above
• Key materials: aluminium, cast iron, brass pressure pieces/pads, stainless-steel washers (depending on version)
• Variant options: standard (for general welding) and stainless-steel-adapted version
• Delivery time: 5–7 working days
• Price: EUR 5,730.00 (per piece)
