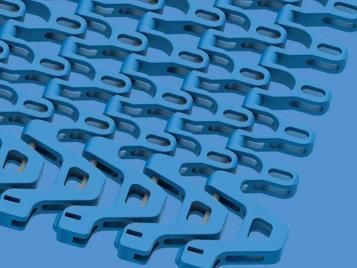

Flush grid conveyor belt S9.1-57 GRT

modularstainless steelfor the food industry

Overview
The Prolink S9.1-57 GRT modular conveyor belt with a 50 mm (1.97 in) pitch is designed for spiral towers with cage drives as well as straight and curved conveyors. The Grid Top provides 57% open area for effective airflow and drainage. Reinforced side modules in a brick-bond layout and stainless-steel hinge pins enable high tensile loads. Series 9.1 is suitable for conveying medium-weight to heavy goods and food.

Design characteristics

• Suitable for spiral towers with cage drives and for straight and curved conveying systems
• Reinforced side modules in a brick-bond pattern to withstand high tensile loads
• Clip-free hinge pin attachment
• Stainless-steel hinge pins for high load capacity, excellent lateral stiffness, reduced belt support and stable belt tracking in curves
• Adjustable collapse factor from 1.3 to 2.9

Documents & Flyers (illustrative references on product page)
The manufacturer provides a data sheet (EN) and product flyers for Series 9.1 as supporting documentation for technical details and specifications.

Technical specifications

• Article number: 890174
• Product family / series: Series 9.1
• Variant / type on page: S9.1-57 GRT (CW/CCW)
• Pitch: 50 mm (1.97 in)
• Top type: Grid Top
• Open area: 57%
• Application: Spiral towers with cage drives; straight and curved conveyors
• Load capability: Suitable for medium-weight to heavy goods and food
• Side modules: Reinforced side modules in a brick-bond layout
• Hinge pins: Stainless-steel hinge pins; clip-free hinge pin attachment
• Adjustable collapse factor: 1.3 – 2.9
