Polyethylene terephthalate conveyor belt RE 8/2 U0/BV5H MT

polyurethanePVCsmooth

Product description

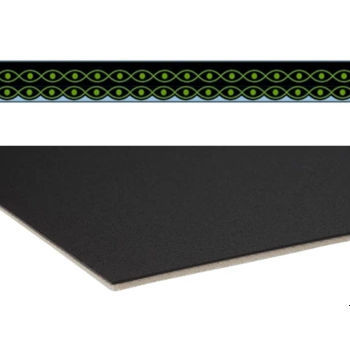

The Transilon RE 8/2 U0/BV5H MT black (article no. 901024) is a conveyor belt developed for logistics and general material handling where a sustainable alternative is required. It features a matte hard bio-based PVC top face and a tension member fabric manufactured from 100% recycled polyester (rPET), combining reduced environmental impact with durable conveying performance. The belt construction is suitable for accumulation, discharge and collecting applications on parcel conveyors and telescopic conveyors.

Applications

• Horizontal conveying and packaging machines
• Accumulation conveyors, collecting conveyors, parcel handling and telescopic conveyors
• Tire industry: quality control lines and temporary storage
• Wood industry: board conveying, fibre/chip bins and material transport

Properties / Advantages

• Tension member fabric made from 100% recycled polyester (rPET)
• Top face material: hard, bio-based polyvinyl chloride (PVC)
• Resource-saving raw materials and regenerative waste recycling
• Positive contribution to life cycle assessment and lower CO₂ footprint
• Suitable for integration in sustainability concepts
• Driving face fabric designed for low noise
• Lateral rigidity suitable for wide systems

Basic data
Top face: Polyvinyl chloride, hard, bio-based
Underside: Polyurethane impregnation
Article no.: 901024
dmin [mm]: 40
Total thickness [mm]: 2.2
k1% relaxed [N/mm width]: 7.5
Weight [kg/m²]: 2.5
Permitted operating temperature [°C]: -10 to +70

Technical specifications

• Top face: Polyvinyl chloride, hard, bio-based
• Underside: Polyurethane impregnation
• Article number: 901024
• dmin: 40 mm
• Total thickness: 2.2 mm
• k1% relaxed: 7.5 N/mm width
• Weight: 2.5 kg/m²
• Permitted operating temperature: -10 to +70 °C
• Fabric made from 100% recycled polyester (rPET)
