Core drilling drilling rig DR-24

multifunctionpilingwell

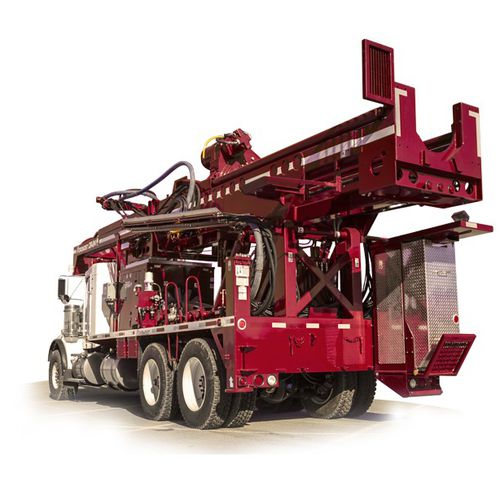

DR 24 Dual Rotary Drill The DR-24 will set casing up to 24” (610 mm) in diameter. This model is commonly used for domestic and municipal wells, and construction applications such as foundation piling projects and holes for hydraulic elevator jacks. The DR-24 is available in PTO or deck engine configurations and can be mounted on a truck, trailer or self-propelled tracked carrier. Available in a stock tandem or tridem configuration. FEATURES Since acquiring the Dual Rotary technology from Barber Industries in 1993, Foremost has continually updated, refined and expanded the DR line with the goal of enhancing its functionality and extending its range of applications. Today, Foremost offers several DR models, each packed with features that deliver heightened safety, productivity, and profitability across a variety of drilling activities. CYCLONE COLLECTOR The optional cyclone sample collecting system slows discharge velocity to allow accurate and continuous sampling of the formation. LOWER DRIVE The lower rotary drive is also used as a powerful breakout and spinner for drill pipe, hammers, bits, and thread casing. TILTING TOP–DRIVE The independent hydraulic top drive tilts for convenient loading of drill pipe and casing with the operator standing at ground level. CASING JAWS Rotation and feed forces are effectively transmitted from the lower drive to the casing via a set of three carbide inserts. Casing jaws are available for all common casing sizes and can be changed out quickly in the field.
