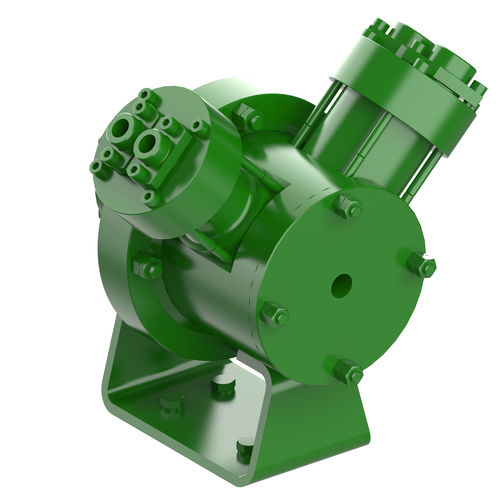

Recovery compressor SA50

reciprocating pistongaselectrically-powered

GAS RECOVERY COMPRESSOR The SA50 is a totally independent gas compression system controlled by a 2.2 kW electric motor. The SA50 compresses natural gas, hydrocarbon gas, air, nitrogen and carbon dioxide. It is used to recover leakage from other machines, such as the pressurised seals of reciprocating compressors or the seals on the shaft of dynamic compressors. It is also used in the compression process for the recovery of combustion gas or other gases. The SA50 compressor has lubricant-free cylinders to guarantee the highest quality of the gas on the delivery line, as there is no presence of oil in the compressed gas. The SA50 can also operate for many hours without the need for maintenance. Main Features - Power output up to 2,2 kW - Lubricant-free cylinders guarantee the highest quality of the supplied gas - No presence of oil in the compressed gas - Low maintenance TECHNICAL FEATURES 2 stage version Suction pressure: 0 – 5 bar Discharge pressure: 12 bar max Flowrate: 40 Nm3/h max Electric motor power: 2,2 kW 400 V Suitable for Zone 2 installation (IIA 3G T1) Suitable for hydrocarbon gases, CO2, N2, air Air cooled Oil-less
