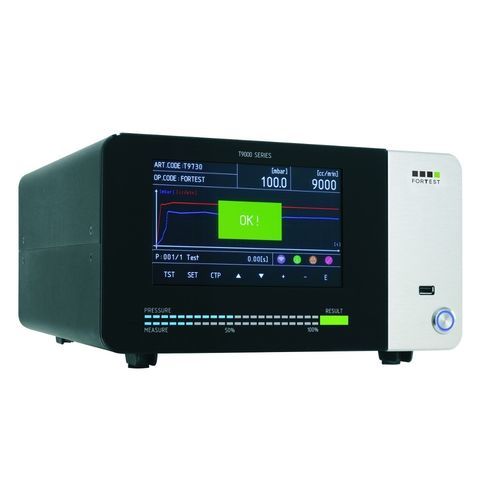

Mass flow leak testing device T9710

for packagingfor valvesfor aeronautical applications

Leak measurement with flow sensor Leak display in volumetric mode (cc/h or cc/min) with a classic leak testing tool is restricted by setting the volume of the piece being tested which, using mathematical algorithms, allows conversion of the pressure decay in volumetric decay. To release this system from restrictions, the flow leak tester T8710 was designed which, using one solid-state and one pressure sensor, displays the leaks detected directly in volumetric mode, with no need to set the volume being tested. This characteristic makes it extremely versatile in the event of large volume variables being tested, and particularly intuitive in the analysis of test cycle progression. Advanced interface. For us, the T9000 series is the most technologically forward of measurement systems, equipped with an advanced interface, useful for analysis and research during the prototyping or pre-series phase, as well as for production line testing. The big, 7” colour display set in a capacitive glass panel allows total interaction with the internal menus and the main screen. The "smart" testing archive contains daily and monthly analysis functions and those specifically for each test program, to keep the level of quality of your products under control. Limitless connectivity. The new T9710 equipment includes ports for the USB slave, RS232, RS485, Can bus and TTY. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc...
