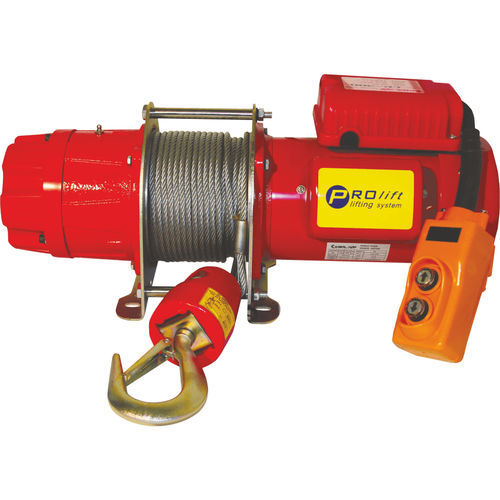

Electric winch PRO-CP series
liftingcompactplanetary

electric winch
electric winch
electric winch
Add to favorites
Compare this product


Characteristics

Operation
electric
Application
lifting
Other characteristics
compact, planetary
Capacity

Min.: 300 kg (661.4 lb)

Max.: 671 kg (1,479.3 lb)

Speed

Min.: 10,000 mm/min (6.6 in/s)

Max.: 15,000 mm/min (9.8 in/s)

Description

PRO-CP300- ELECTRIC WINCH European Directives: • SR EN 14492-1 Cranes. Power Driven Winches; • Machinery Directive 2006/42/EC; • Directive relating to Electromagnetic Compatibility (EMC) • 2004/108/EC; • Directive for Low Voltages (LVD) 2006/95/EC. Main features: • light weight and compact design; • easy installation; • electromagnetic safety brake; • planetary gearing for increased efficiency; • cast steel housing; • high efficiency bearings all over the rolling surface; • locking flange to prevent jamming the wire between the drum and the mount; • remote control unit with two functions - up/down; • silent operation; • thermal protection to prevent overheating and burning out the engine. Technical specifications: • lifting capacity: 300 kg; • lifting speed: 10-15 m/min at 50 Hz; • engine: 1.15 kW x 4 poles; • wire rope: 6 mm x 30 m; • maximum lifting height: 29 m; • drum diameter: 94 mm; • drum flange diameter: 154 mm; • distance between flanges: 110 mm; • mounting plate dimensions: 142 x 142 mm; • weight: 40 kg; • protection class: IP44; • power supply: 220 V. • Standard accessories: • traction wire rope: 6 mm x 30 m;pro-cp300-tblx • remote control unit cable: 1.25 mm2 x 3 m x 5 strands; • power cord: 1.5 mm2 x 3 m x 3 strands.
