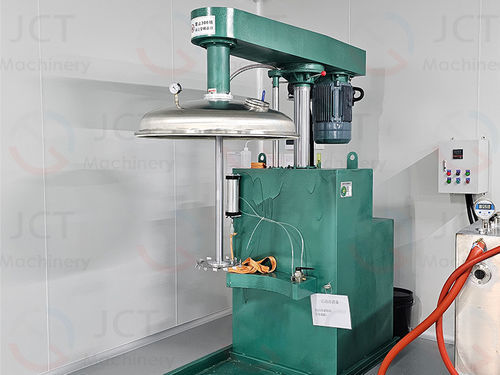

High-shear disperser HSD series

batchhigh-speedcolor

Overview
A high-speed disperser, also called a high-shear mixer, is used in chemical, pharmaceutical, food and cosmetics industries to mix, dissolve, disperse and emulsify materials quickly. It consists of a motor-driven shaft with an impeller that generates high shear and turbulence to break agglomerates and disperse solids into liquids.

Key Features

• Motor
• Mixing vessel
• Shaft and impeller
• Speed control

Technical data
Models: HSD-200 | HSD-300 | HSD-300 | HSD-500 | HSD-500 | HSD-1000 | HSD-1000 | HSD-3000
Capacity: 10 GAL (38L) | 100 GAL (379L) | 200 GAL (757L) | 300 GAL (1,136L) | 600 GAL (2,271L) | 1,000 GAL (3,785L) | 1,000 GAL (3,785L) | 6,000 GAL (22,712L)
Power: 3 HP (2 kW) | 5-10 HP (4-8 kW) | 15-20 HP (11-15 kW) | 20-30 HP (15-22 kW) | 40-60 HP (30-45 kW) | 75-100 HP (55-75 kW) | 125-200 HP (93-149 kW) | 250-300 HP (187-224 kW)
Shaft OD: 1.44 IN [36.5 mm] | 1.63 IN [41.3 mm] | 2 IN [50.8 mm] | 2.5 IN [63.5 mm] | 3 IN [76.2 mm] | 3.5 IN [89 mm] | 4.5 IN [114.3 mm] | 5 IN [127 mm]

Motor
The disperser is equipped with an electric motor that drives the shaft and impeller to deliver the torque and speed required for dispersion.

Mixing vessel
Materials are processed in a tank or vessel; vessel design and size depend on application and batch volume.

Shaft and impeller
Shafts are made of durable materials (e.g. stainless steel); impellers are shaped to produce high shear and controlled turbulence for effective dispersion.

Speed control
Variable speed control allows adjustment of rotation to match material rheology and process requirements.

Types of agitator

• High-speed mixer (disperser)

Characteristics / technical specifications

• Series: HSD series (models HSD-200 to HSD-3000)
• Capacities: from 10 GAL (38 L) up to 6,000 GAL (22,712 L)
• Power range: ~3 HP (2 kW) to 250-300 HP (187-224 kW)
• Shaft outer diameters: 1.44 in (36.5 mm) to 5 in (127 mm)
• Main functions: high-shear dispersion, mixing, dissolving, emulsifying, de-agglomeration
• Construction: motor-driven shaft and impeller, stainless-steel wetted parts, variable speed control, customizable vessel configurations
• Typical applications: chemicals, paints/coatings, pigments, adhesives, food, pharmaceuticals, cosmetics
