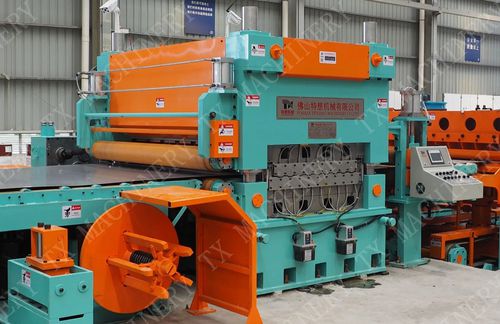

Flying cut-to-length cutting line for steelfor aluminumfor stainless steel
Add to favorites
Compare this product
Characteristics
- Material
- for steel, for aluminum, for stainless steel, for PVC
- Associated function
- stacking, straightening
- Applications
- for industrial applications
- Other characteristics
- flying, rotary
- Cutting speed
50 m/min
Description
The purpose that TX developed the type of rotary flying shear line is to achieve better flatness accuracy and continuous production, and reduced required space.
TX’s flying shear cut to length line can be applied for processing material like HR(hot-rolled steel), high tensile steel, pre-painted steel, stainless steel, aluminium and etc. The thickness range covers from 0.1 to 25mm. Line speed is 50m/min max.
Commonly the flying shear cross cutting line is composed of decoiler, pinch roll & straightening unit, leveling unit, length measuring unit, flying shear, stacking unit(additional equipment like side trimmer, PVC film applicator, Crop shear…can be incorporated).
TX’s flying shear is applicable for light gauge, medium gauge, and heavy gauge cut-to-length line.
