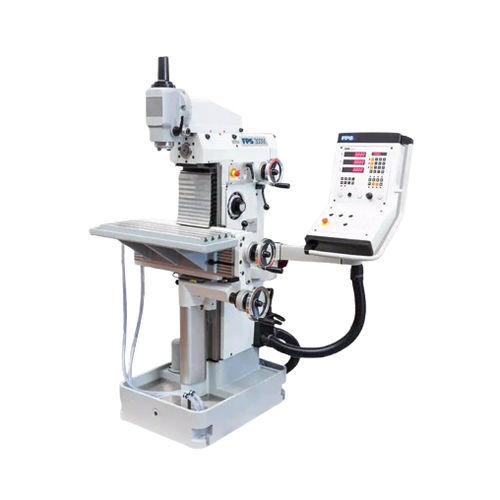

3-axis milling machine FPS 300M

universalwith moving tableindustrial

A fast introduction into milling and drilling. Solid, durable, and maintenance-friendly – the ideal companion in the training workshop. User-friendly thanks to well-designed ergonomics. Compact machine for limited space. Use tools and special accessories from the manual DECKEL-FP series. Cutting head can also be moved further along the Y-axis - 100 mm W x D x H space - 1735 x 1465 x 1725 mm Solid angle table Table/clamping surface - 210 x 600 mm T-grooves: Number / width / distance - 5 / 12 H7 / 45 mm Permitted load - 200 kg Operating spindle Vertical and horizontal Vertically extending as drill spindle, with clamp/stroke - approx. 60 mm Manually rotating cutting head - +/- 90° Tool holder Manual ISO 40-DIN69871 tightening system - M16 or optional variant in line with DECKEL standard - S 20x2 Hydraulic tightening system - - or optional variant* - - Main drive, three-phase-current brake motor Gear stages (clockwise/anti-clockwise) - 8 Feed drive, digital drive Feed rate, continuously variable - 5 to 500 mm/min Rapid feed - 1200 mm/min Control wheel manual rotation - X-axis, 4.0 mm Y/Z-axis, 2.5 mm Connection Mains connection - 3 x 400 V AC, 50/60 Hz Power consumption - 6 kVA Max. prelim. fuse rating - 20 A Control cabinet electronics CE-compliant in line with current regulations of professional associations - BGVA 3 / DIN EN 60204-1 Weight Total machine weight incl. machining table and cutting head - approx. 770 kg Control cabinet - approx. 140 kg
