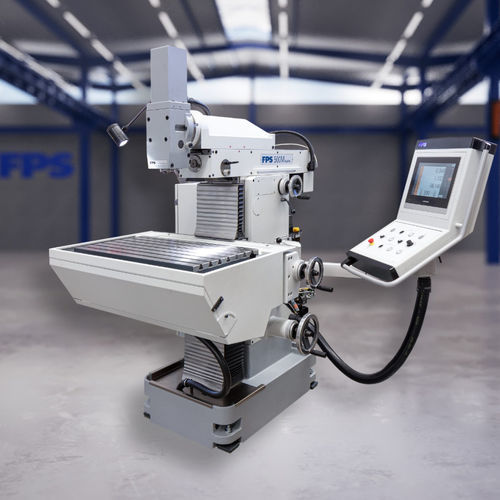

3-axis milling machine FPS 500M-hydro

universalindustrialcutting

A fast introduction into milling and drilling. Solid, durable, and maintenance-friendly – the ideal companion in the training workshop. User-friendly thanks to well-designed ergonomics. Compact machine for limited space. Use tools and special accessories from the manual DECKEL-FP series. Cutting head can also be moved further along the Y-axis - 150 mm W x D x H space - 2000 x 2100 x 2010 mm Solid angle table Table/clamping surface - 800 x 420 mm T-grooves: Number / width / distance - 7 / 14H12 - alignment groove 14H7 / 63 mm Permitted load - 300 kg Operating spindle Vertical and horizontal horizontla (optional) Vertically extending as drill spindle, with clamp/stroke - approx. 80 mm Horizontally extending as drill spindle, with clamp/stroke - approx. 100 mm (optional) Manually rotating cutting head - +/- 90° Tool holder Hydraulic tightening system - DIN 69872 (standard) DIN 2080 (optional) Main drive, three-phase-current brake motor stepless adjustable Feed drive, digital drive Feed rate, stepless adjustable - 5 to 500 mm/min Rapid feed - 1500 mm/min Control wheel manual rotation - X/Y/Z-axis, 2.5 mm Connection Mains connection - 3 x 400 V AC, 50/60 Hz Power consumption - 7 kVA Max. prelim. fuse rating - 35 A NA Control cabinet electronics CE-compliant in line with current regulations of professional associations - BGVA 3 / DIN EN 60204-1 Weight Total machine weight incl. machining table, cutting head and control cabinet - approx. 1600 kg
