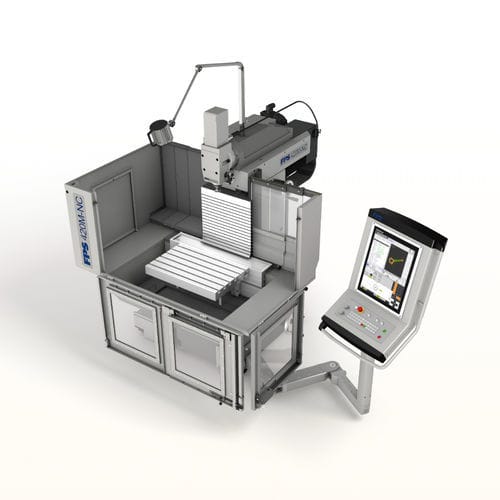

3-axis CNC milling machine FPS 420M-NC

universaldrilling

The perfect entry into modern manufacturing Solid, durable and easy to maintain – the ideal machine for use in apprenticeship and manufacturing With variable operating speeds of up to 4500 rpm – ideal for higher feed rates and cutting speeds User-friendly thanks to an intuitive, ergonomic design Compact machine dimensions for use in limited space Swiveling control panel SIEMENS 840 D SL or HEIDENHAIN TNC 620 FS CNC control. Cutting head can also be moved further along the Y-axis - 150 mm W x D x H space - 2235 x 1875 x 2000 mm Angle table Table/clamping surface - 630 x 400 mm T-grooves: Number / width / distance - 6 / 14 H12 alignment groove H7 / 63 mm Permitted load - 300 kg Operating spindle Vertical and horizontal Vertically extending as drill spindle, with clamp/stroke - approx. 80 mm Manually rotating cutting head - +/- 90° Tool holder with hydraulic tool clamping - ISO 40 DIN 69871 Tightening system Hydraulic tightening system - DIN 69872 (standard) DIN 2080 (optional) Main drive, three-phase-current brake motor Torque - 340 Nm Feed drive, digital drive Feed rate, continuously variable - 0 to 2000 mm/min Rapid feed - 5000 mm/min Control wheel manual rotation - 2.5 mm Connection Mains connection - 3 x 400 VAC 50 Hz 25 A Max. prelim. fuse rating - 35 A Mains configuration - TN-S connection type: Fixed connection Control cabinet electronics CE-compliant in line with current regulations of professional associations - BGVA 3 / DIN EN 60204-1 Weight Total machine weight incl. machining table, cutting head and spray guard cabin - approx. 1800 kg Control Linear path control - SINUMERIK 840 D SL HEIDENHAIN TNC 620 FS
