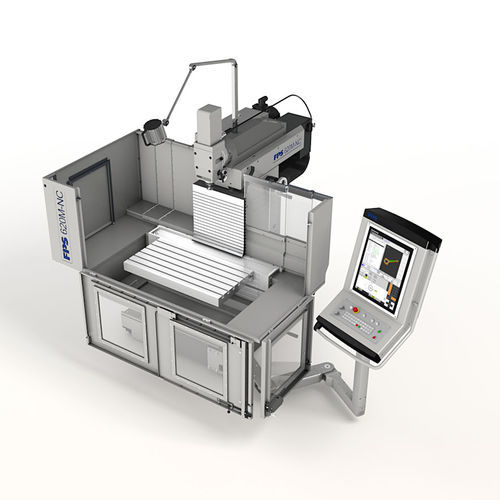

3-axis CNC milling machine FPS 620M-NC

universaldrilling

The perfect entry into modern manufacturing Solid, durable and easy to maintain – the ideal machine for use in apprenticeship and manufacturing With variable operating speeds of up to 4500 rpm – ideal for higher feed rates and cutting speeds User-friendly thanks to an intuitive, ergonomic design Compact machine dimensions for use in limited space Swiveling control panel SIEMENS 840 D SL or HEIDENHAIN TNC 620 FS CNC control. Enhanced, innovative features Our robust and versatile FPS 420M-NC and FPS 620M-NC machines are the product of our vision for how modern manufacturing should operate. The machines offer the simple and familiar usability of our renowned manual milling machines, yet they also open up a range of entirely new possibilities thanks to the latest CNC – control systems. Our innovative milling and drilling machines combine the best of both worlds – manual control and digital performance. Cutting head can also be moved further along the Y-axis - 150 mm W x D x H space - 2435 x 1875 x 2000 mm Angle table Table/clamping surface - 820 x 420 mm T-grooves: Number / width / distance - 6 / 14 H12 alignment groove H7 / 63 mm Permitted load - 300 kg Operating spindle Vertical and horizontal Vertically extending as drill spindle, with clamp/stroke - approx. 80 mm Manually rotating cutting head - +/- 90° Tool holder with hydraulic tool clamping - ISO 40 DIN 69871 Tightening system Hydraulic tightening system - DIN 69872 (standard) DIN 2080 (optional) Main drive, three-phase-current brake motor Torque - 340 Nm Speed across - 2 gear stages 0 to 4500 rpm Feed drive, digital drive Feed rate, continuously variable - 0 to 2000 mm/min Rapid feed - 5000 mm/min
