Synchronous motor PM36
direct current80 V

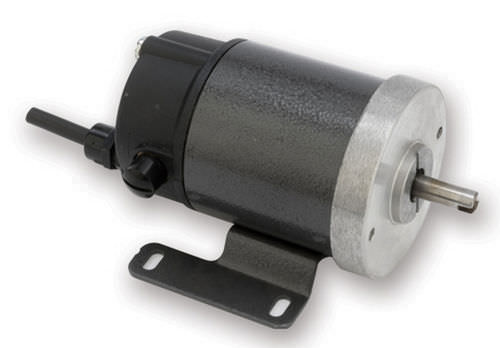

Synchronous motor - PM36 - Fracmo - direct current / 80 V
Synchronous motor - PM36 - Fracmo - direct current / 80 V
Add to favorites
Compare this product

Characteristics

Type
synchronous, direct current
Voltage
80 V
Power

Max.: 75 W
(0.1 hp)

Min.: 25 W
(0.03 hp)

Description

Features Voltage Range: 12 - 180 VDC Continuous Output Power: 25 - 75 Watts Speed Range: 1500 - 4000 RPM Poles: 2 Brushgear: Cartridge Size Diameter: 64mm Size Length: 99 - 139mm Weight: 1.2Kg Maximum Shaft Diameter: 8mm Enclosure Rating: up to IP54 Mounting: Face/Flange/Foot/Gearbox Insulation: Class F Connection: Flying Leads Custom Features Brake: 12 or 24 VDC to 6Nm, hand release Mounting: Spigot diameter, Hole diameter, PCD Output Shaft: Length, Diameter, Keyways, Threads (internal or External) Leads: Length, Plug or Connector Paint Finish: Semi Gloss, Gloss, Hammer Paint Colour: Black, Grey, Blue, White
