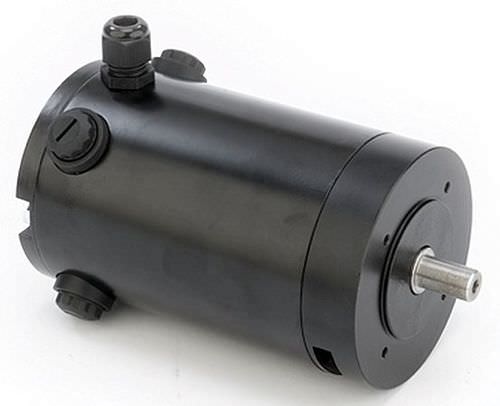

DC motor PM62synchronous80 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Voltage
- 80 V
- Configuration
- permanent magnet
- Power
Max.: 500 W
(0.68 hp)Min.: 75 W
(0.102 hp)
Description
Features
Voltage Range: 12 - 180 VDC
Continuous Output Power: 75 - 500 Watts
Speed Range: 1500 - 4000 RPM
Poles: 4
Brushgear: Cartridge
Size Diameter: 105mm
Size Length: 132 - 222mm
Weight: 6.0Kg
Maximum Shaft Diameter: 20mm
Enclosure Rating: up to IP54
Mounting: Face/Flange/Foot/Gearbox
Insulation: Class F
Connection: Flying Leads
Custom Features
Brushgear: Internal
Brake: 12 or 24 VDC to 6Nm, hand release
Mounting: Spigot diameter, Hole diameter, PCD
Output Shaft: Length, Diameter, Keyways, Threads (internal or External)
Leads: Length, Plug or Connector
Paint Finish: Semi Gloss, Gloss, Hammer
Paint Colour: Black, Grey, Blue, White
Gearbox Compatibility
G34
G46
G63
IMS
G120
PA
