RF connector 678 series
DINelbowcircular

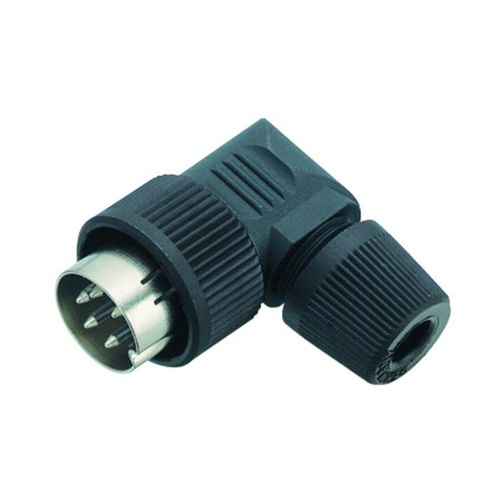

RF connector - 678 series - Franz Binder GmbH + Co. Elektrische Bauelemente KG - DIN / elbow / circular
RF connector - 678 series - Franz Binder GmbH + Co. Elektrische Bauelemente KG - DIN / elbow / circular
Add to favorites
Compare this product

Characteristics

Type
RF
Format
DIN
Shape
elbow, circular
Connection type
male, bayonet
Material
PBT
Protection class
IP40
Other characteristics
miniature
Primary current

3 A, 5 A, 6 A, 7 A

Voltage

60 V, 125 V, 250 V

Description

Bayonet Male angled connector, Contacts: 2, 4.0-6.0 mm, unshielded, solder, IP40 Connector design - Male angled connector Version - Connector pin angled Connector locking system - Bayonet Termination - solder Degree of protection - IP40 Cross-sectional area - max. 0.75 mm² / AWG 18 Cable outlet - 4.0-6.0 mm Twistability - not rotatable Temperature range from/to - -40 °C / 85 °C Tightening torque pressing screw - 0.4-0.5 Nm Mechanical operation - > 500 Mating cycles Weight (g) - 11.56 Customs tariff number - 85369010
