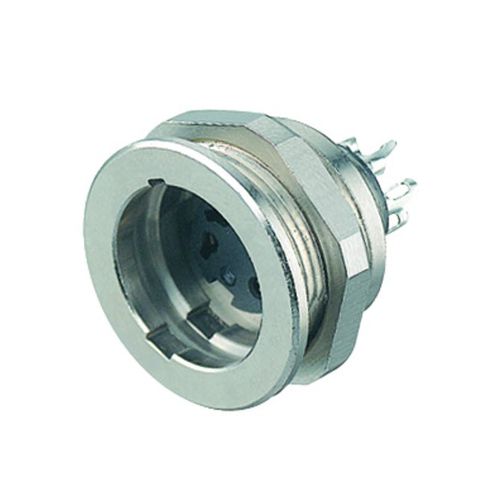

RF connector 440 seriesDINcircularfemale
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- DIN
- Shape
- circular
- Connection type
- female, push-pull
- Material
- PBT
- Protection class
- IP67
- Other characteristics
- miniature, panel-mount
- Primary current
3 A, 5 A, 6 A, 7 A
- Voltage
60 V, 125 V, 250 V
Description
Push-Pull Female panel mount connector, Contacts: 3 DIN, unshielded, solder, IP40
Connector design - Female panel mount connector
Version - Connector socket straight
Connector locking system - Push-Pull
Termination - solder
Degree of protection - IP40
Cross-sectional area - 0.75 mm² / AWG 18
Temperature range from/to - -40 °C / 85 °C
Tightening torque screw nut - 2.0 Nm
Mechanical operation - > 1000 Mating cycles
Weight (g) - 20.33
Customs tariff number - 85369010
