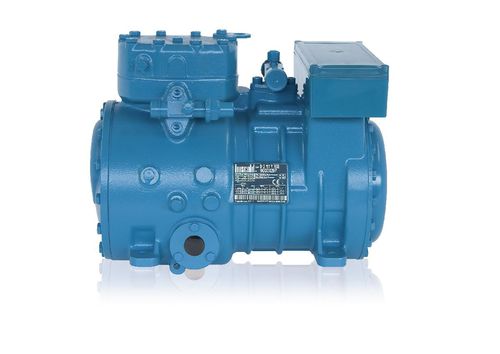

Piston compressor D3-13.1Y
airelectrically-poweredstationary

piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Flow

15.78 m³/h
(557.27 ft³/h)

Description

2 cylinder compressor with integrated direct on line (DOL) motor starter and ptc probes connected to the protection system. •∆ = 50Hz/220-240V/3Ph (60Hz/265-290V/3Ph) •Y = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph) - motor monitoring and protection electronic module - suction and discharge valves - IP56 electrical connections box - POE32 oil load - oil sight glass for visual checks or connection to automatic mechanical and electric devices/regulators - rubber supports - protection charge (inert gas 1 bar) - appropriate packaging for transport, handling and storage Option - electric motors for various voltage supply values - oil heating resistors - motor far for additional cooling - head with RSH system for capacity control - oil level electronic regulator - flange+valve kit for aligned assembly
