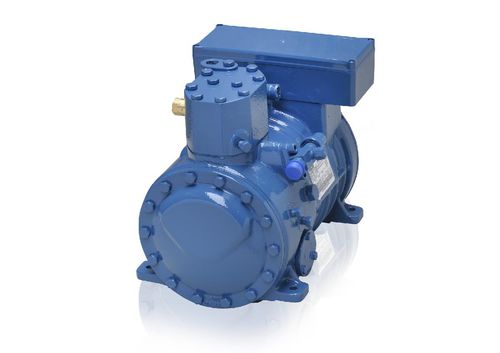

Piston compressor D2.5-6H2Yairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- lubricated
- Application domain
- industrial
- Flow
7.81 m³/h
(275.81 ft³/h)- Power
1.8 kW
(2.45 hp)
Description
2 cylinder compressor with integrated direct on line (DOL) motor starter and ptc probes connected to the protection system.
•∆ = 50Hz/220-240V/3Ph (60Hz/265-290V/3Ph)
•Y = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph)
- motor monitoring and protection electronic module
- suction and discharge valves
- IP56 electrical connections box
- POE68 oil load
- oil sight glass for visual checks or connection to automatic mechanical and electric devices/regulators
- rubber supports
- protection charge (inert gas 1 bar)
- appropriate packaging for transport, handling and storage
Option
- electric motors for various voltage supply values
- oil heating resistors
- motor far for additional cooling
- head with RSH system for capacity control
- oil level electronic regulator
- flange+valve kit for aligned assembly
