Electrostatic charge generator 7333

electrostatic charge generator
electrostatic charge generator
electrostatic charge generator
electrostatic charge generator
electrostatic charge generator
electrostatic charge generator
Add to favorites
Compare this product


Characteristics

Type
electrostatic charge

Description

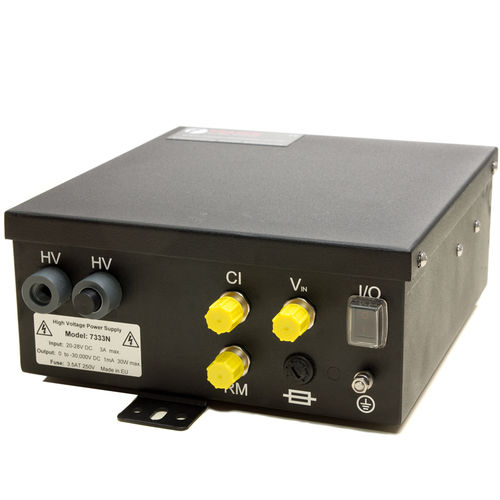

The 7333 Static Generators offer the latest technology in providing safe, controllable power up to 30kV, 1mA for temporary adhesion applications. Designed for full integration with a machine or production process and available in AC or DC Models. Performance The 7333 uses solid state electronics and switching technology for stability and reliability. 0-30kV / 1mA available for continuous output. 2 Models - either 24V DC (7333DC) or 90V - 264V AC operation (7333AC). Fast rise and decay times. Two HV output connections, more connections available with external connector box. Available in positive or negative polarities to be specified at time of order. Control Interface The control interface gives the operator complete control of the functions of the 7333. On / Off switching of the high voltage. High voltage setting and adjustment. Setting and adjustment of current limits. Remote sensing of actual output voltage and current for easy display. For complete ease of installation the 7333 provides a 10V DC supply for all of the above functions the customer does not need to supply additional power. There is automatic selection of constant current or constant voltage mode.

Catalogs

No catalogs are available for this product.

See all of Fraser Anti-Static Techniques‘s catalogs
