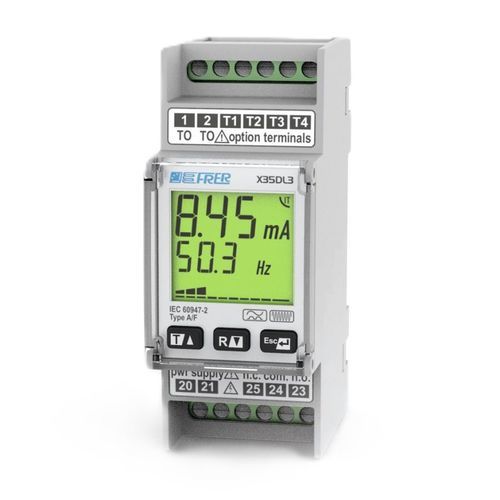

Earth-fault detector X35DL3

Overview
The earth leakage relays of the X...DL3 series are designed for intuitive, automatic and continuous detection of leakage (residual) currents. The integrated multi‑colour LCD provides immediate visual indication of insulation status for fast diagnosis and maintenance.

Product family and mounting

• Series: X...DL3
• Format: compact, occupies 2 DIN rail modules
• Mounting: DIN rail (2 modules)
• Display: multi‑colour LCD for continuous insulation monitoring

Main features

• Type A‑F detection
• Compact design: 2 DIN‑rail modules
• Multi‑colour LCD for continuous insulation status indication
• Intuitive and automatic leakage current detection
• Adjustable tripping/actuating current

Documentation and resources

• Data sheet (PDF)
• User manual (PDF)
• Available options (PDF)
• Certifications (PDF)
• Technical drawing (PDF/DWG)

Multimedia

• Product video demonstrating adjustment of actuating current settings

Technical characteristics / specifications

• Model: X35DL3
• Series: X...DL3
• Type: Type A‑F earth leakage relay
• Mounting: 2 DIN rail modules (compact)
• Display: multi‑colour LCD for insulation status indication
• Function: earth leakage (residual current) detection and insulation monitoring
• Manufacturer: FRER
