Earth-fault detector X48DL3

Overview
The X48DL3 from the X...DL3 series is a Type A‑F earth leakage relay providing automatic leakage‑current detection and continuous insulation‑status monitoring via a multi‑colour LCD. Designed for front‑panel installation in distribution boards, control panels and industrial machinery.

Features

• Type A‑F earth leakage detection (AC and pulsed DC faults)
• Compact 48×48 mm panel mounting
• Multi‑colour LCD for continuous insulation‑status indication
• Automatic and continuous leakage‑current monitoring
• Adjustable trip/current settings for protection coordination

Downloads

• Data sheet
• User manual
• Available options document
• Certifications document

Video

• X...DL3 relay: adjusting actuating current settings (product video)

Available images and drawings

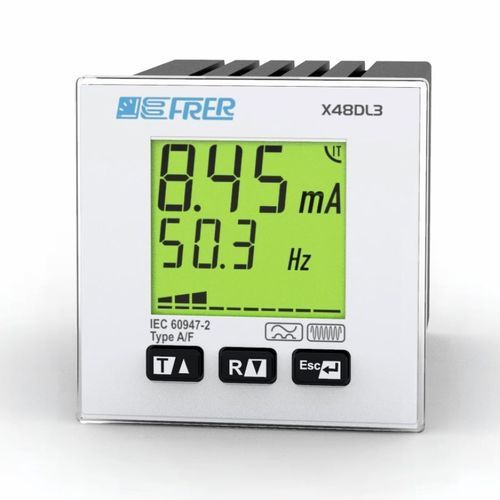

• Main product image
• Mechanical drawing (Ingombro_X48DL3)

Technical specifications

• Model: X48DL3
• Series: X...DL3
• Product type: Type A‑F compact earth leakage relay
• Panel cutout / front size: 48×48 mm
• Display: Multi‑colour LCD for continuous insulation monitoring
• Main functions: leakage‑current detection, continuous insulation monitoring, adjustable trip/current
• Related documents: Data sheet, User manual, Options, Certifications
• Available drawing: Ingombro_X48DL3 (mechanical dimensions)
• Brand: FRER
