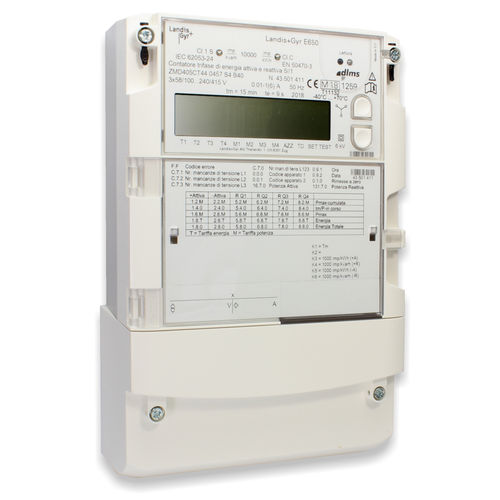

Three-phase electric energy meter CSEZMD series

wall-mounteddigitalMID certified

Energy meters approved by Enel Distribuzione. The CSEZMD... series is made of high performances counters available in different accuracy classes which cover medium and large industrial and commercial applications. The CSEZMD... counters are always fitted with two pulse outputs for remote energy counting. Moreover plug & play communications module are available which will permit to choose among different communication types (RS485, RS232, CS, Ethernet, GSM etc ...). The Plug & Play communication modules for counters of CSEZMD series ... permit to improve the counter features with different types of communication in simple and precise manner. The possible choices are GSM / GPRS modem, Ethernet, RS485, RS232, CS ... with IEC62056-21 and DLMS protocol. It 'also possible to exchange easily the modules at any time. For Modbus communication Frer proposes the DLMS-MODBUS gateway by which is possible to read the data coming from the energy meters using the Modbus RTU or the Modbus TCP protocol (max.4 energy meters on RS485). DETAILS FLUSH-MOUNTING LCD QUICK DELIVERY Technical data display 8 digit - 6mm (indice / index !eld) accuracy class active energy 0,5S (IEC 62053-22) CSEZMD405 1 (IEC 62053-21) CSEZMD310 0,2S (IEC 62053-22)CSEZMD402 reactive energy 1% (IEC 62053-23) CSEZMD405 1% (IEC 62053-23) CSEZMD310 0,5% (IEC 62053-23) CSEZMD402 Un nominal input voltage Un 3x58/100V...240/415V CSEZMD405 3x230/400V CSEZMD310 3x58/100V CSEZMD402 input voltage range 0,8-1,15 Un In nominal input current In 0,01...1(6) A CSEZMD405 0,25...5(100) A CSEZMD310 5//1 (6) A CSEZMD402 operating frequency 50Hz ±2% power supply /self supplied
