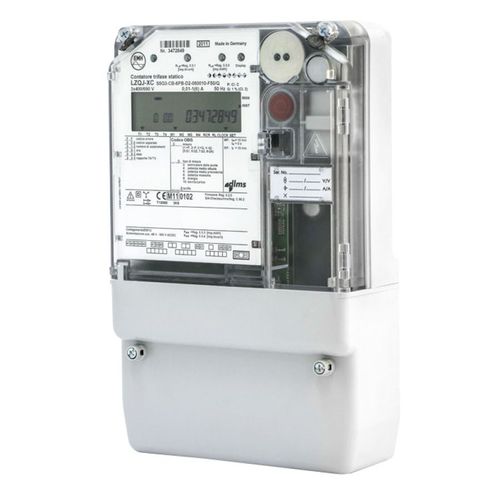

Three-phase electrical energy meter CSEEMHD21wall-mountedMID certifieddigital
Add to favorites
Compare this product
Characteristics
- Type
- three-phase
- Assembly
- wall-mounted
- Other characteristics
- MID certified, digital
- Voltage
Min.: 58 V
Max.: 415 V
- Primary current
Min.: 0.01 A
Max.: 6 A
Description
MID C Energy meter ENEL Distribuzione approved. for LV-MV applications
LV-MV 100-400V 1-5A MID C - EMH LZQJ-XC
• display
- 8 digit 8mm (lettura / value field)
- 8 digit - 6mm (indice / index field)
accuracy class
• active energy C
• reactive energy 1% (Cl.2)
• nominal input voltage Un 3x58/100V...240/415V
• input voltage range 0,8-1,15 Un
• nominal input current In 0,01...1(6) A
• operating frequency 50Hz, 60Hz, 16.7Hz
• power supply /self supplied
• additional power supply 48÷300Vac/dc
• operating temperature -25…+55°C
• storage temperature -40…+70°C
• protection IP51
• interface RS232 V24/ITU-T 9600bps
Optical D0 (EN62056-21/IEC1107)
pulse outputs
• voltage 12÷250 Vac/dc
• max. current 100mA
• pulse length 20 ms
• max. switching frequency 25Hz
• pulse values 5000 Imp./kWh-kVARh
